Schema documentation for component metobj:SatelliteImageReference

Showing:

Attributes

Diagrams

Properties

Source

Used by

Element metobj:SatelliteImageReference

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

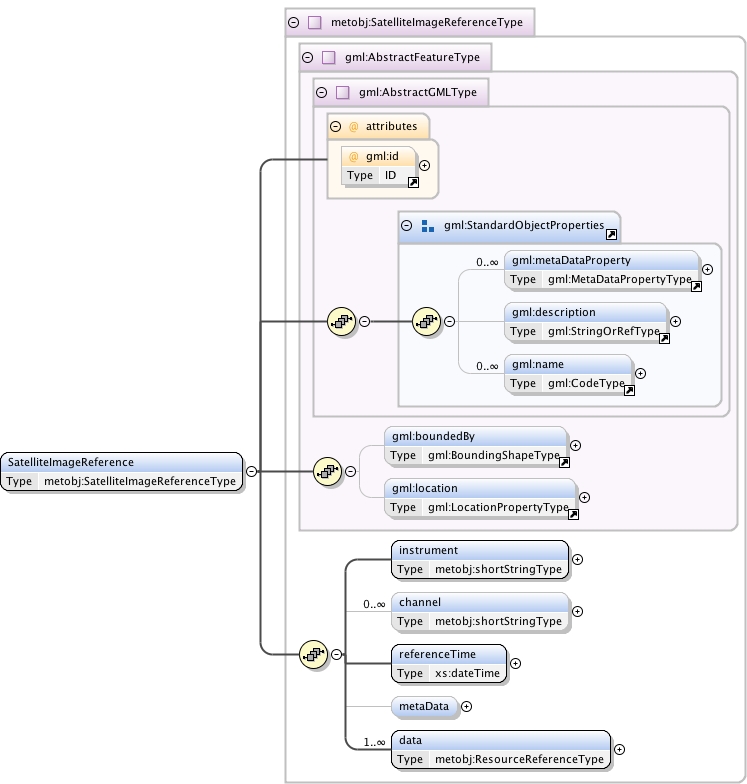

Diagram

Type

metobj:SatelliteImageReferenceType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:SatelliteImageReferenceType

Properties

content:

complex

Used by

Complex Type

metobj:SatelliteImageReferencePropertyType

Model

gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:instrument , metobj:channel* , metobj:referenceTime , metobj:metaData{0,1} , metobj:data+

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, metobj:channel, metobj:data, metobj:instrument, metobj:metaData, metobj:referenceTime

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:element name="SatelliteImageReference" type="metobj:SatelliteImageReferenceType" substitutionGroup="gml:_Feature"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
