Showing:

Attributes
Diagrams
Properties
Source
Element metobj:FontSymbol
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

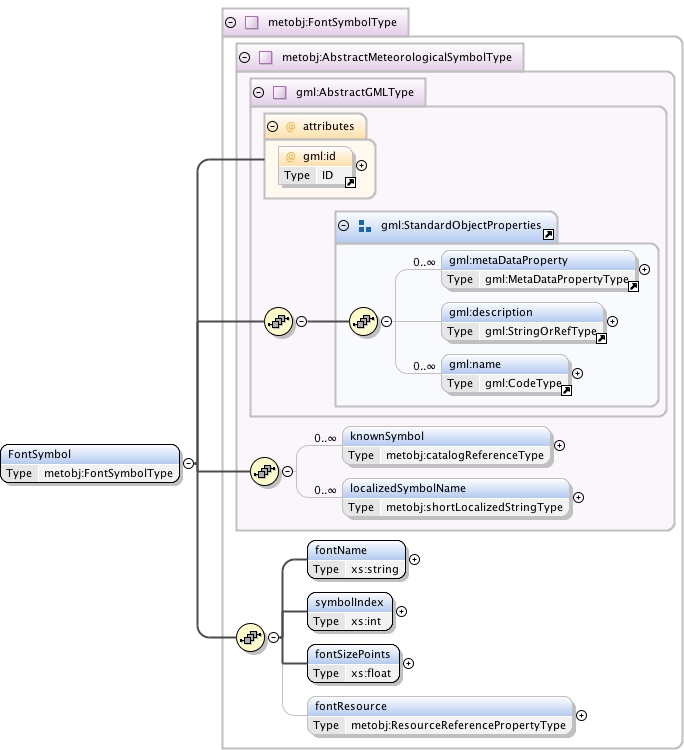

Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex237.tmp#id266 docindex237.tmp#id269 docindex237.tmp#id265 docindex379.tmp#id853 docindex379.tmp#id854 docindex379.tmp#id855 docindex379.tmp#id856 docindex379.tmp#id852
Type metobj:FontSymbolType
Type hierarchy
Properties
content: complex
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , metobj:knownSymbol* , metobj:localizedSymbolName* , metobj:fontName , metobj:symbolIndex , metobj:fontSizePoints , metobj:fontResource{0,1}
Children gml:description, gml:metaDataProperty, gml:name, metobj:fontName, metobj:fontResource, metobj:fontSizePoints, metobj:knownSymbol, metobj:localizedSymbolName, metobj:symbolIndex
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<xs:element name="FontSymbol" type="metobj:FontSymbolType" substitutionGroup="metobj:_MeteorologicalSymbol"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
