Element metobj:SimpleCubicSplineCurve
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

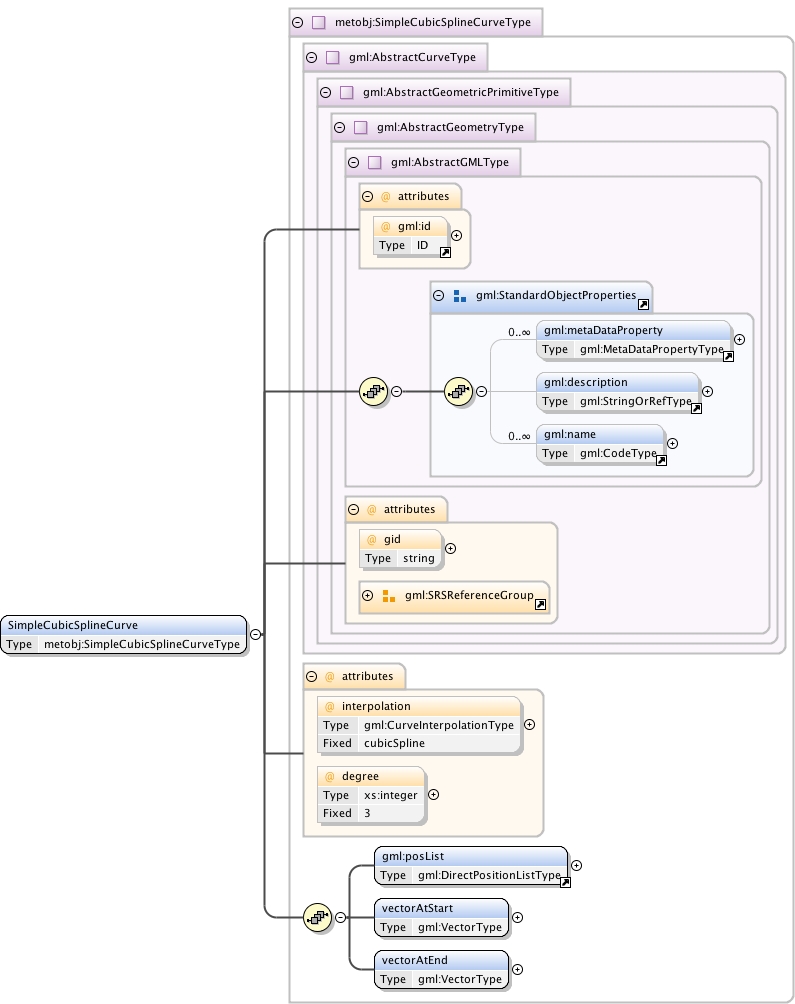

Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex18.tmp#id117 docindex19.tmp#id62 docindex18.tmp#id116 docindex75.tmp#id250 docindex244.tmp#id325 docindex327.tmp#id802 docindex327.tmp#id803 docindex39.tmp#id425 docindex327.tmp#id800 docindex327.tmp#id801 docindex327.tmp#id799
Type metobj:SimpleCubicSplineCurveType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:posList , metobj:vectorAtStart , metobj:vectorAtEnd
Children gml:description, gml:metaDataProperty, gml:name, gml:posList, metobj:vectorAtEnd, metobj:vectorAtStart
Attributes
QName Type Fixed Default Use Annotation
axisLabels gml:NCNameList optional
Ordered list of labels for all the axes of this CRS. The gml:axisAbbrev value should be used for these axis
				labels, after spaces and forbiddden characters are removed. When the srsName attribute is included, this attribute is optional.
				When the srsName attribute is omitted, this attribute shall also be omitted.
degree xs:integer 3 optional
The degree for a cubic spline is "3".
gid string optional
This attribute is included for backward compatibility with GML 2 and is deprecated with GML 3.
						This identifer is superceded by "gml:id" inherited from AbstractGMLType. The attribute "gid" should not be used
						anymore and may be deleted in future versions of GML without further notice.
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
interpolation gml:CurveInterpolationType cubicSpline optional
The attribute "interpolation" specifies the curve interpolation mechanism used for this segment. This mechanism uses the control points and control parameters to determine the position of this curve segment. For a CubicSpline the interpolation is fixed as "cubicSpline".
srsDimension positiveInteger optional
The "srsDimension" is the length of coordinate sequence (the number of entries in the list). This dimension is
				specified by the coordinate reference system. When the srsName attribute is omitted, this attribute shall be omitted.
srsName anyURI optional
In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType
				(see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the
				location the URI points to. If no srsName attribute is given, the CRS must be specified as part of the larger context this
				geometry element is part of, e.g. a geometric element like point, curve, etc. It is expected that this attribute will be specified
				at the direct position level only in rare cases.
uomLabels gml:NCNameList optional
Ordered list of unit of measure (uom) labels for all the axes of this CRS. The value of the string in the
				gml:catalogSymbol should be used for this uom labels, after spaces and forbiddden characters are removed. When the
				axisLabels attribute is included, this attribute shall also be included. When the axisLabels attribute is omitted, this attribute
				shall also be omitted.
Source
<xs:element name="SimpleCubicSplineCurve" type="metobj:SimpleCubicSplineCurveType" substitutionGroup="gml:_Curve"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
