Element gml:_strictAssociation
Namespace http://www.opengis.net/gml
Annotations
must carry a reference to an object or contain an object but not both

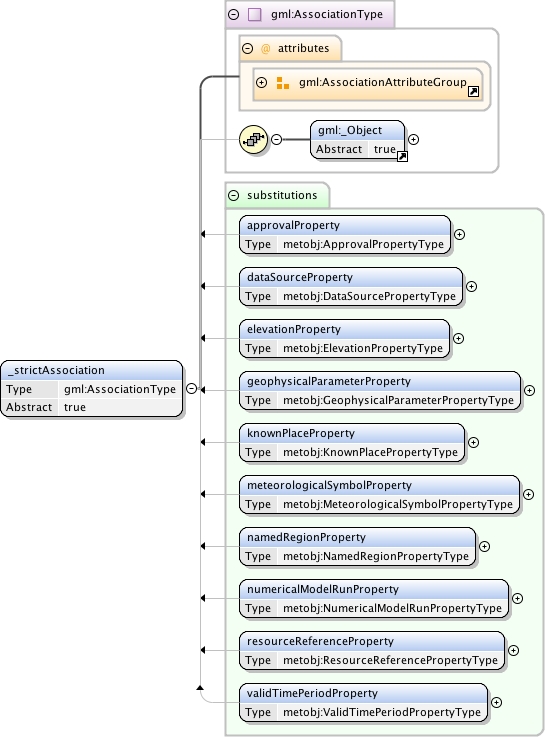

Diagram
Diagram docindex0.tmp#id37 docindex133.tmp#id124 docindex134.tmp#id123 docindex135.tmp#id665 docindex136.tmp#id671 docindex137.tmp#id667 docindex138.tmp#id668 docindex139.tmp#id251 docindex140.tmp#id262 docindex141.tmp#id666 docindex142.tmp#id672 docindex143.tmp#id670 docindex144.tmp#id669
Type gml:AssociationType
Properties
content: complex
abstract: true
Model gml:_Object
Children gml:_Object
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
        of traversal from the starting resource to the ending resource;
        it's value should be treated as follows:
        onLoad - traverse to the ending resource immediately on loading
                 the starting resource
        onRequest - traverse from the starting resource to the ending
                    resource only on a post-loading event triggered for
                    this purpose
        other - behavior is unconstrained; examine other markup in link
                for hints
        none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
        of the ending resource on traversal from the starting resource; it's
        value should be treated as follows:
        new - load ending resource in a new window, frame, pane, or other
              presentation context
        replace - load the resource in the same window, frame, pane, or
                  other presentation context
        embed - load ending resource in place of the presentation of the
                starting resource
        other - behavior is unconstrained; examine other markup in the
                link for hints
        none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source
<element name="_strictAssociation" type="gml:AssociationType" abstract="true">
  <annotation>
    <appinfo>
      <sch:pattern name="refAndContent co-occurence prohibited">
        <sch:rule context="gml:_strictAssociation">
          <sch:extends rule="hrefOrContent"/>
        </sch:rule>
      </sch:pattern>
    </appinfo>
    <documentation>must carry a reference to an object or contain an object but not both</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.1.1/base/gmlBase.xsd
