Element gml:_TimeObject
Namespace http://www.opengis.net/gml
Annotations

This abstract element acts as the head of the substitution group for temporal primitives and complexes.

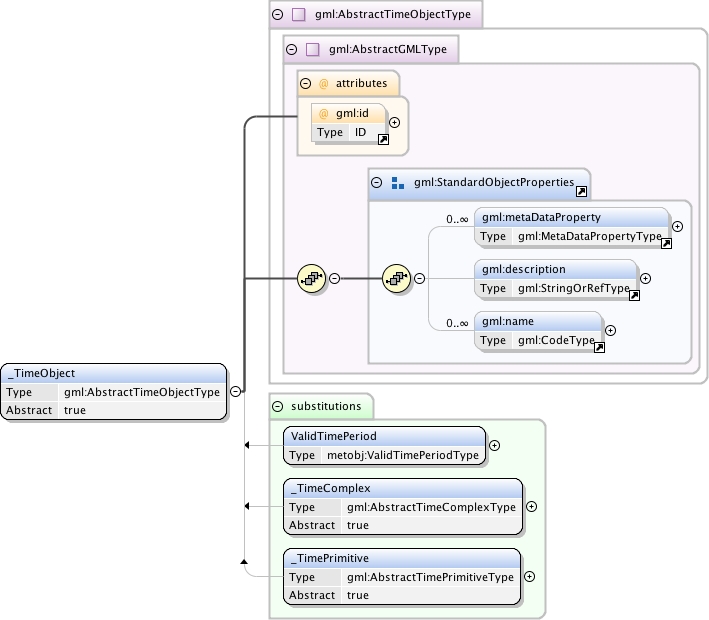

Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex108.tmp#id179 docindex258.tmp#id152 docindex309.tmp#id761 docindex310.tmp#id755
Type gml:AbstractTimeObjectType
Type hierarchy
Properties
content: complex
abstract: true
Model gml:metaDataProperty* , gml:description{0,1} , gml:name*
Children gml:description, gml:metaDataProperty, gml:name
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<element name="_TimeObject" type="gml:AbstractTimeObjectType" abstract="true" substitutionGroup="gml:_GML">
  <annotation>
    <documentation xml:lang="en">This abstract element acts as the head of the substitution group for temporal primitives and complexes.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.1.1/base/temporal.xsd
