Element gml:DirectedObservation
Namespace http://www.opengis.net/gml/3.2
Annotations

A gml:DirectedObservation is the same as an observation except that it adds an additional gml:direction property. This is the direction in which the observation was acquired. Clearly this applies only to certain types of observations such as visual observations by people, or observations obtained from terrestrial cameras.

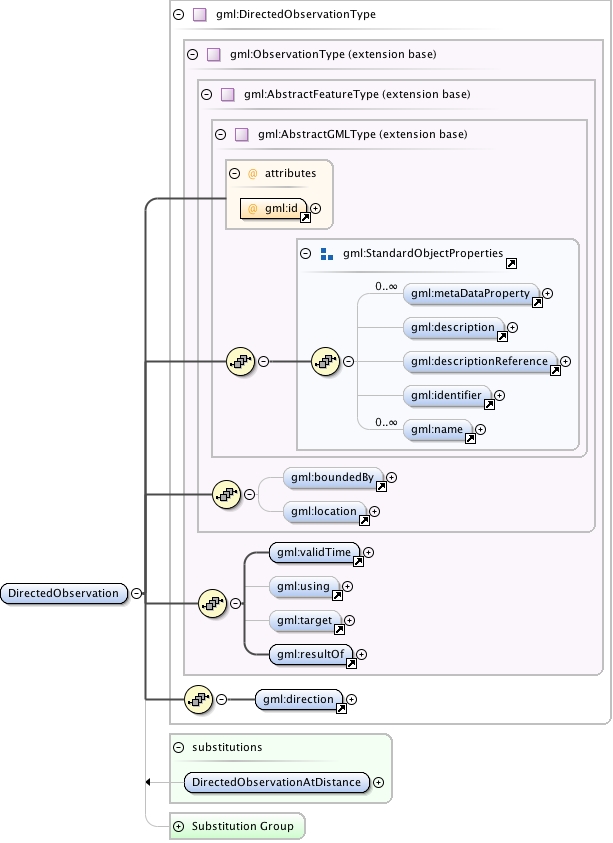

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index42.tmp#id112 index43.tmp#id136 index44.tmp#id76 index45.tmp#id176 index46.tmp#id1913 index47.tmp#id1915 index48.tmp#id1918 index1055.tmp#id1912 index1056.tmp#id769 index1057.tmp#id1920 index1386.tmp#id346
Type gml:DirectedObservationType
Type hierarchy
Properties
content: complex
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime , gml:using{0,1} , gml:target{0,1} , gml:resultOf , gml:direction
Children gml:boundedBy, gml:description, gml:descriptionReference, gml:direction, gml:identifier, gml:location, gml:metaDataProperty, gml:name, gml:resultOf, gml:target, gml:using, gml:validTime
Instance

<gml:DirectedObservation gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:DirectedObservation>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="DirectedObservation" type="gml:DirectedObservationType" substitutionGroup="gml:Observation">
  <annotation>
    <documentation>A gml:DirectedObservation is the same as an observation except that it adds an additional gml:direction property. This is the direction in which the observation was acquired. Clearly this applies only to certain types of observations such as visual observations by people, or observations obtained from terrestrial cameras.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/observation.xsd
