Element womlcore:LinearRingSurface
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15

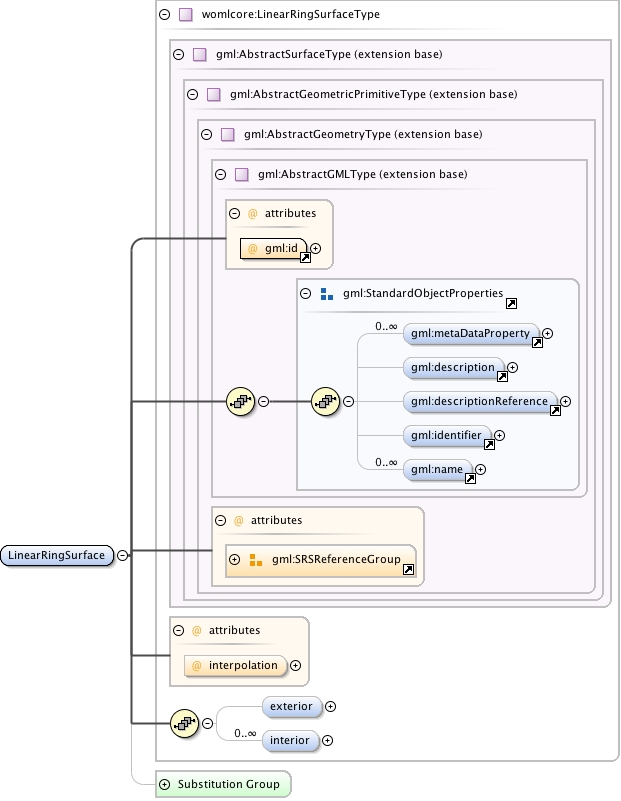

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index90.tmp#id120 index91.tmp#id172 index92.tmp#id238 index93.tmp#id237 index94.tmp#id2377 index94.tmp#id2375 index94.tmp#id2376 index94.tmp#id2374
Type womlcore:LinearRingSurfaceType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , womlcore:exterior{0,1} , womlcore:interior*
Children gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, womlcore:exterior, womlcore:interior
Instance

<womlcore:LinearRingSurface axisLabels="" gml:id="" interpolation="planar" srsDimension="" srsName="" uomLabels="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</womlcore:LinearRingSurface>
Attributes
QName Type Fixed Default Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
interpolation gml:SurfaceInterpolationType planar optional
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="LinearRingSurface" type="womlcore:LinearRingSurfaceType" substitutionGroup="gml:AbstractSurface"/>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/deprecated.xsd
