Element gml:PolyhedralSurface
Namespace http://www.opengis.net/gml/3.2
Annotations

A polyhedral surface is a surface composed of polygon patches connected along their common boundary curves. This differs from the surface type only in the restriction on the types of surface patches acceptable.
polygonPatches encapsulates the polygon patches of the polyhedral surface.

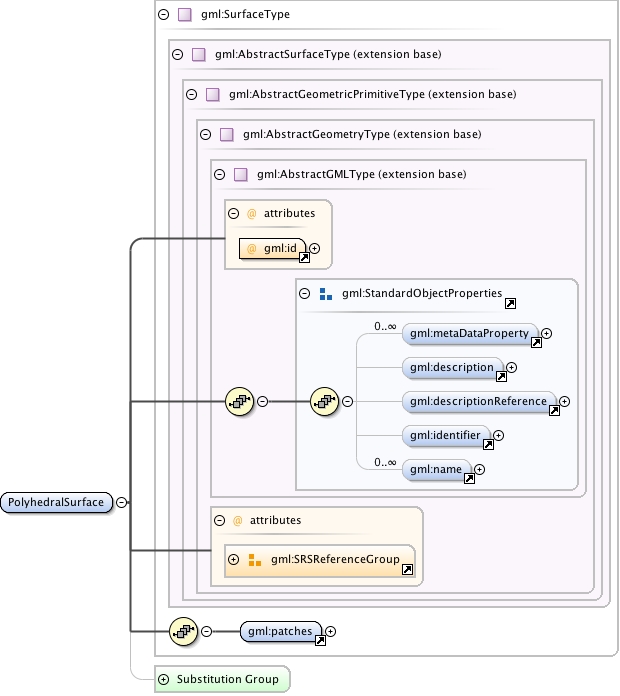

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index90.tmp#id120 index91.tmp#id172 index92.tmp#id238 index93.tmp#id237 index884.tmp#id492 index885.tmp#id491
Type gml:SurfaceType
Type hierarchy
Properties
content: complex
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:patches
Children gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, gml:patches
Instance

<gml:PolyhedralSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:PolyhedralSurface>
Attributes
QName Type Fixed Default Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="PolyhedralSurface" type="gml:SurfaceType" substitutionGroup="gml:Surface">
  <annotation>
    <documentation>A polyhedral surface is a surface composed of polygon patches connected along their common boundary curves. This differs from the surface type only in the restriction on the types of surface patches acceptable. polygonPatches encapsulates the polygon patches of the polyhedral surface.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
