Element gml:DerivedUnit
Namespace http://www.opengis.net/gml/3.2
Annotations

Derived units are defined by combination of other units.  Derived units are used for quantities other than those corresponding to the base units, such as hertz (s-1) for frequency, Newton (kg.m/s2) for force.  Derived units based directly on base units are usually preferred for quantities other than the fundamental quantities within a system. If a derived unit is not the preferred unit, the gml:ConventionalUnit element should be used instead.
The gml:DerivedUnit extends gml:UnitDefinition with the property gml:derivationUnitTerms.

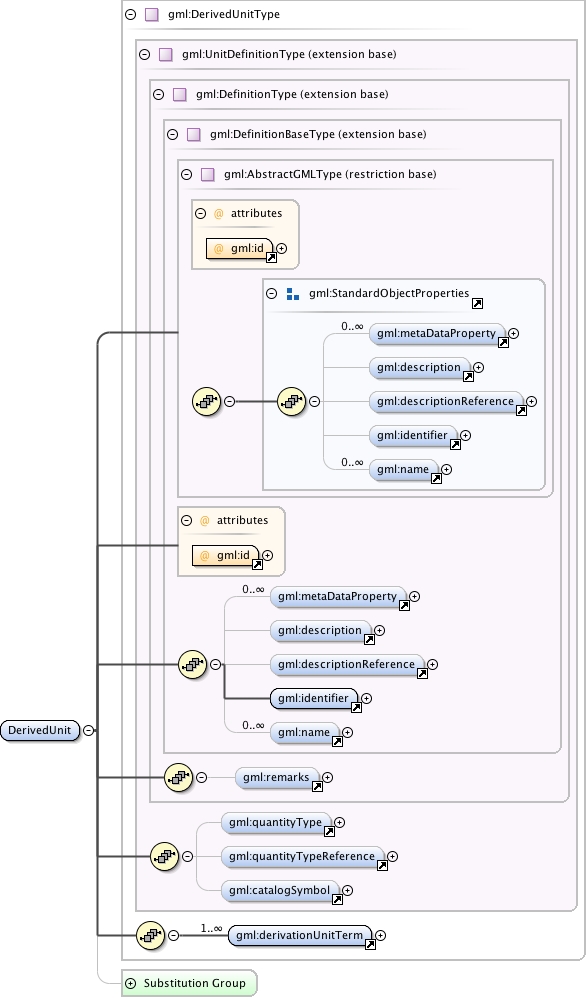

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index149.tmp#id581 index150.tmp#id582 index151.tmp#id580 index315.tmp#id583 index316.tmp#id584 index317.tmp#id585 index1157.tmp#id579 index1158.tmp#id589 index1159.tmp#id588
Type gml:DerivedUnitType
Type hierarchy
Properties
content: complex
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier , gml:name* , gml:remarks{0,1} , gml:quantityType{0,1} , gml:quantityTypeReference{0,1} , gml:catalogSymbol{0,1} , gml:derivationUnitTerm+
Children gml:catalogSymbol, gml:derivationUnitTerm, gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, gml:quantityType, gml:quantityTypeReference, gml:remarks
Instance

<gml:DerivedUnit gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:DerivedUnit>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="DerivedUnit" type="gml:DerivedUnitType" substitutionGroup="gml:UnitDefinition">
  <annotation>
    <documentation>Derived units are defined by combination of other units. Derived units are used for quantities other than those corresponding to the base units, such as hertz (s-1) for frequency, Newton (kg.m/s2) for force. Derived units based directly on base units are usually preferred for quantities other than the fundamental quantities within a system. If a derived unit is not the preferred unit, the gml:ConventionalUnit element should be used instead. The gml:DerivedUnit extends gml:UnitDefinition with the property gml:derivationUnitTerms.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/units.xsd
