Element gml:ArcString
Namespace http://www.opengis.net/gml/3.2
Annotations
An ArcString is a curve segment that uses three-point circular arc interpolation ("circularArc3Points"). The number of arcs in the arc string may be explicitly stated in the attribute numArc. The number of control points in the arc string shall be 2 * numArc + 1.
The content model follows the general pattern for the encoding of curve segments.

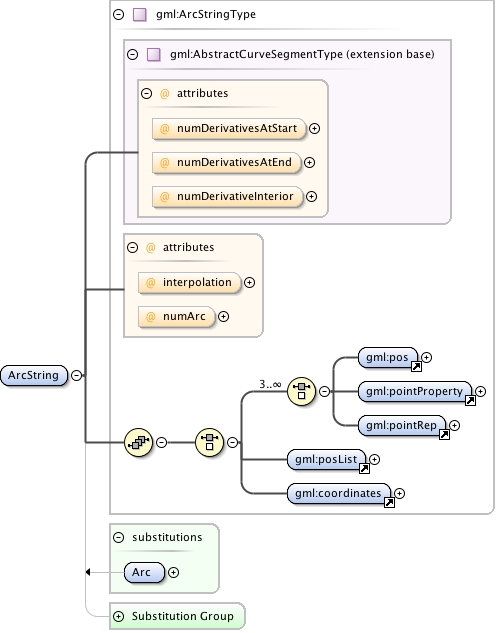

Diagram
Diagram index160.tmp#id251 index160.tmp#id252 index160.tmp#id253 index160.tmp#id250 index642.tmp#id447 index642.tmp#id448 index176.tmp#id128 index64.tmp#id254 index177.tmp#id258 index178.tmp#id259 index179.tmp#id129 index642.tmp#id446 index1420.tmp#id430
Type gml:ArcStringType
Type hierarchy
Properties
content: complex
Model (gml:pos | gml:pointProperty | gml:pointRep | gml:posList | gml:coordinates)
Children gml:coordinates, gml:pointProperty, gml:pointRep, gml:pos, gml:posList
Instance
<gml:ArcString interpolation="circularArc3Points" numArc="" numDerivativeInterior="0" numDerivativesAtEnd="0" numDerivativesAtStart="0">
  <gml:pos axisLabels="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:pos>
  <gml:pointProperty xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointProperty>
  <gml:pointRep xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointRep>
  <gml:posList axisLabels="" count="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:posList>
  <gml:coordinates cs="," decimal="." ts=" ">{1,1}</gml:coordinates>
</gml:ArcString>
Attributes
QName Type Fixed Default Use Annotation
interpolation gml:CurveInterpolationType circularArc3Points optional
numArc integer optional
numDerivativeInterior integer 0 optional
numDerivativesAtEnd integer 0 optional
numDerivativesAtStart integer 0 optional
Source
<element name="ArcString" type="gml:ArcStringType" substitutionGroup="gml:AbstractCurveSegment">
  <annotation>
    <documentation>An ArcString is a curve segment that uses three-point circular arc interpolation ("circularArc3Points"). The number of arcs in the arc string may be explicitly stated in the attribute numArc. The number of control points in the arc string shall be 2 * numArc + 1. The content model follows the general pattern for the encoding of curve segments.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
