Element gml:GeodesicString
Namespace http://www.opengis.net/gml/3.2
Annotations

A sequence of geodesic segments.
The number of control points shall be at least two.
interpolation is fixed as "geodesic".
The content model follows the general pattern for the encoding of curve segments.

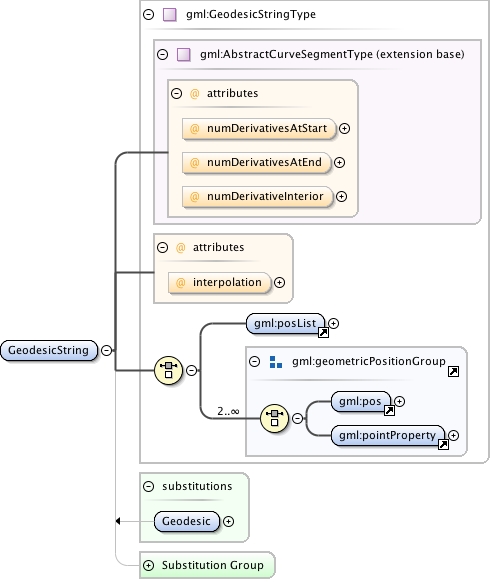

Diagram
Diagram index160.tmp#id251 index160.tmp#id252 index160.tmp#id253 index160.tmp#id250 index862.tmp#id489 index178.tmp#id259 index176.tmp#id128 index64.tmp#id254 index590.tmp#id488 index862.tmp#id487 index1032.tmp#id439
Type gml:GeodesicStringType
Type hierarchy
Properties
content: complex
Model gml:posList | gml:pos | gml:pointProperty
Children gml:pointProperty, gml:pos, gml:posList
Instance

<gml:GeodesicString interpolation="geodesic" numDerivativeInterior="0" numDerivativesAtEnd="0" numDerivativesAtStart="0">
  <gml:posList axisLabels="" count="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:posList>
</gml:GeodesicString>
Attributes
QName Type Fixed Default Use Annotation
interpolation gml:CurveInterpolationType geodesic optional
numDerivativeInterior integer 0 optional
numDerivativesAtEnd integer 0 optional
numDerivativesAtStart integer 0 optional
Source

<element name="GeodesicString" type="gml:GeodesicStringType" substitutionGroup="gml:AbstractCurveSegment">
  <annotation>
    <documentation>A sequence of geodesic segments. The number of control points shall be at least two. interpolation is fixed as "geodesic". The content model follows the general pattern for the encoding of curve segments.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
