Element womlcore:SimpleCubicSpline
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15

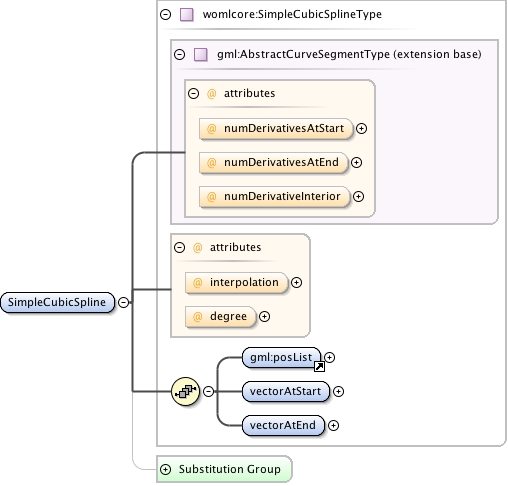

Diagram
Diagram index160.tmp#id251 index160.tmp#id252 index160.tmp#id253 index160.tmp#id250 index202.tmp#id2330 index202.tmp#id2331 index178.tmp#id259 index202.tmp#id2328 index202.tmp#id2329 index202.tmp#id2327
Type womlcore:SimpleCubicSplineType
Type hierarchy
Properties
content: complex
Model gml:posList , womlcore:vectorAtStart , womlcore:vectorAtEnd
Children gml:posList, womlcore:vectorAtEnd, womlcore:vectorAtStart
Instance

<womlcore:SimpleCubicSpline degree="3" interpolation="cubicSpline" numDerivativeInterior="0" numDerivativesAtEnd="0" numDerivativesAtStart="0">
  <gml:posList axisLabels="" count="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:posList>
  <womlcore:vectorAtStart axisLabels="" srsDimension="" srsName="" uomLabels="">{1,1}</womlcore:vectorAtStart>
  <womlcore:vectorAtEnd axisLabels="" srsDimension="" srsName="" uomLabels="">{1,1}</womlcore:vectorAtEnd>
</womlcore:SimpleCubicSpline>
Attributes
QName Type Fixed Default Use Annotation
degree integer 3 optional
The degree for a cubic spline is "3".
interpolation gml:CurveInterpolationType cubicSpline optional
The attribute "interpolation" specifies the curve interpolation mechanism used for this segment. This mechanism
uses the control points and control parameters to determine the position of this curve segment. For a CubicSpline the interpolation is fixed as "cubicSpline".
numDerivativeInterior integer 0 optional
numDerivativesAtEnd integer 0 optional
numDerivativesAtStart integer 0 optional
Source

<element name="SimpleCubicSpline" type="womlcore:SimpleCubicSplineType" substitutionGroup="gml:AbstractCurveSegment"/>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/deprecated.xsd
