Element gml:PassThroughOperation
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:PassThroughOperation is a pass-through operation specifies that a subset of a coordinate tuple is subject to a specific coordinate operation.
The modifiedCoordinate property elements are an ordered sequence of positive integers defining the positions in a coordinate tuple of the coordinates affected by this pass-through operation. The AggregationAttributeGroup should be used to specify that the modifiedCoordinate elements are ordered.

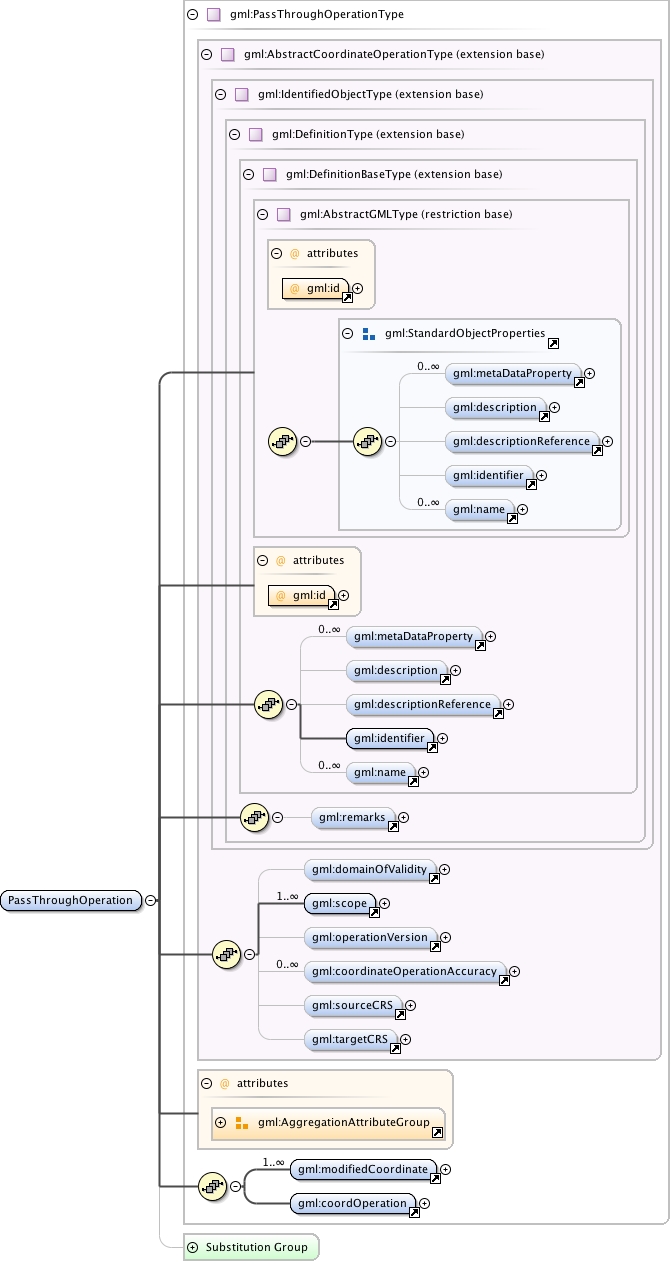

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index149.tmp#id581 index150.tmp#id582 index151.tmp#id580 index152.tmp#id930 index163.tmp#id931 index164.tmp#id1003 index183.tmp#id1014 index184.tmp#id1015 index185.tmp#id1124 index186.tmp#id1126 index187.tmp#id1013 index26.tmp#id389 index873.tmp#id1853 index874.tmp#id1848 index1225.tmp#id1852
Type gml:PassThroughOperationType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier , gml:name* , gml:remarks{0,1} , gml:domainOfValidity{0,1} , gml:scope+ , gml:operationVersion{0,1} , gml:coordinateOperationAccuracy* , gml:sourceCRS{0,1} , gml:targetCRS{0,1} , gml:modifiedCoordinate+ , gml:coordOperation
Children gml:coordOperation, gml:coordinateOperationAccuracy, gml:description, gml:descriptionReference, gml:domainOfValidity, gml:identifier, gml:metaDataProperty, gml:modifiedCoordinate, gml:name, gml:operationVersion, gml:remarks, gml:scope, gml:sourceCRS, gml:targetCRS
Instance

<gml:PassThroughOperation aggregationType="" gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:PassThroughOperation>
Attributes
QName Type Fixed Default Use Annotation
aggregationType gml:AggregationType optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="PassThroughOperation" type="gml:PassThroughOperationType" substitutionGroup="gml:AbstractSingleOperation">
  <annotation>
    <documentation>gml:PassThroughOperation is a pass-through operation specifies that a subset of a coordinate tuple is subject to a specific coordinate operation. The modifiedCoordinate property elements are an ordered sequence of positive integers defining the positions in a coordinate tuple of the coordinates affected by this pass-through operation. The AggregationAttributeGroup should be used to specify that the modifiedCoordinate elements are ordered.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/coordinateOperations.xsd
