Element gml:AbstractCurveSegment
Namespace http://www.opengis.net/gml/3.2
Annotations

A curve segment defines a homogeneous segment of a curve.
The attributes numDerivativesAtStart, numDerivativesAtEnd and numDerivativesInterior specify the type of continuity as specified in ISO 19107:2003, 6.4.9.3.
The AbstractCurveSegment element is the abstract head of the substituition group for all curve segment elements, i.e. continuous segments of the same interpolation mechanism.
All curve segments shall have an attribute interpolation with type gml:CurveInterpolationType specifying the curve interpolation mechanism used for this segment. This mechanism uses the control points and control parameters to determine the position of this curve segment.

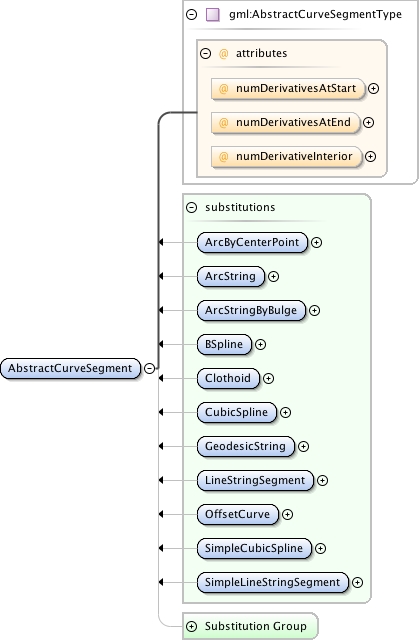

Diagram
Diagram index160.tmp#id251 index160.tmp#id252 index160.tmp#id253 index160.tmp#id250 index1333.tmp#id434 index1334.tmp#id429 index1335.tmp#id432 index1336.tmp#id269 index1337.tmp#id437 index680.tmp#id247 index1338.tmp#id438 index682.tmp#id289 index1339.tmp#id436 index1340.tmp#id440 index1341.tmp#id441
Type gml:AbstractCurveSegmentType
Properties
content: complex
abstract: true
Used by
Attributes
QName Type Fixed Default Use Annotation
numDerivativeInterior integer 0 optional
numDerivativesAtEnd integer 0 optional
numDerivativesAtStart integer 0 optional
Source

<element name="AbstractCurveSegment" type="gml:AbstractCurveSegmentType" abstract="true" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>A curve segment defines a homogeneous segment of a curve. The attributes numDerivativesAtStart, numDerivativesAtEnd and numDerivativesInterior specify the type of continuity as specified in ISO 19107:2003, 6.4.9.3. The AbstractCurveSegment element is the abstract head of the substituition group for all curve segment elements, i.e. continuous segments of the same interpolation mechanism. All curve segments shall have an attribute interpolation with type gml:CurveInterpolationType specifying the curve interpolation mechanism used for this segment. This mechanism uses the control points and control parameters to determine the position of this curve segment.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
