Element gml:MultiCurve
Namespace http://www.opengis.net/gml/3.2
Annotations

A gml:MultiCurve is defined by one or more gml:AbstractCurves.
The members of the geometric aggregate may be specified either using the "standard" property (gml:curveMember) or the array property (gml:curveMembers). It is also valid to use both the "standard" and the array properties in the same collection.

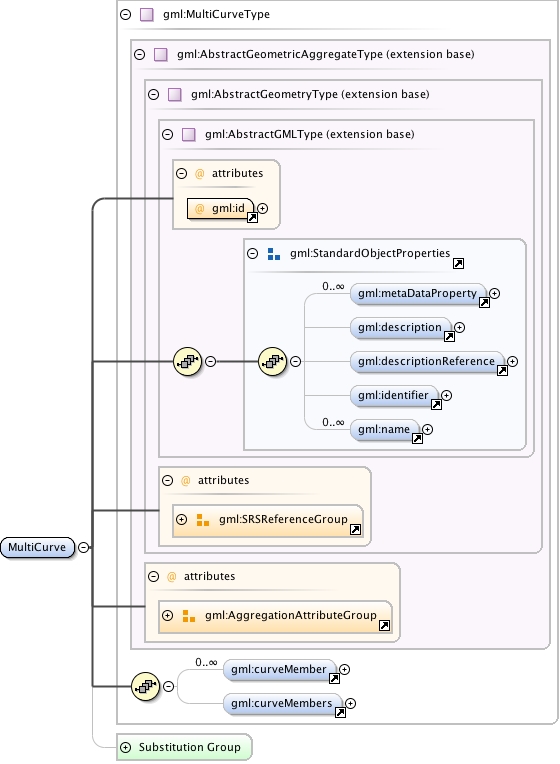

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index90.tmp#id120 index91.tmp#id172 index26.tmp#id389 index172.tmp#id388 index833.tmp#id405 index1061.tmp#id409 index1237.tmp#id404
Type gml:MultiCurveType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:curveMember* , gml:curveMembers{0,1}
Children gml:curveMember, gml:curveMembers, gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name
Instance

<gml:MultiCurve aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:MultiCurve>
Attributes
QName Type Fixed Default Use Annotation
aggregationType gml:AggregationType optional
axisLabels gml:NCNameList optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="MultiCurve" type="gml:MultiCurveType" substitutionGroup="gml:AbstractGeometricAggregate">
  <annotation>
    <documentation>A gml:MultiCurve is defined by one or more gml:AbstractCurves. The members of the geometric aggregate may be specified either using the "standard" property (gml:curveMember) or the array property (gml:curveMembers). It is also valid to use both the "standard" and the array properties in the same collection.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryAggregates.xsd
