Element gml:CubicSpline
Namespace http://www.opengis.net/gml/3.2
Annotations

The number of control points shall be at least three.
vectorAtStart is the unit tangent vector at the start point of the spline. vectorAtEnd is the unit tangent vector at the end point of the spline. Only the direction of the vectors shall be used to determine the shape of the cubic spline, not their length.
interpolation is fixed as "cubicSpline".
degree shall be the degree of the polynomial used for the interpolation in this spline. Therefore the degree for a cubic spline is fixed to "3".
The content model follows the general pattern for the encoding of curve segments.

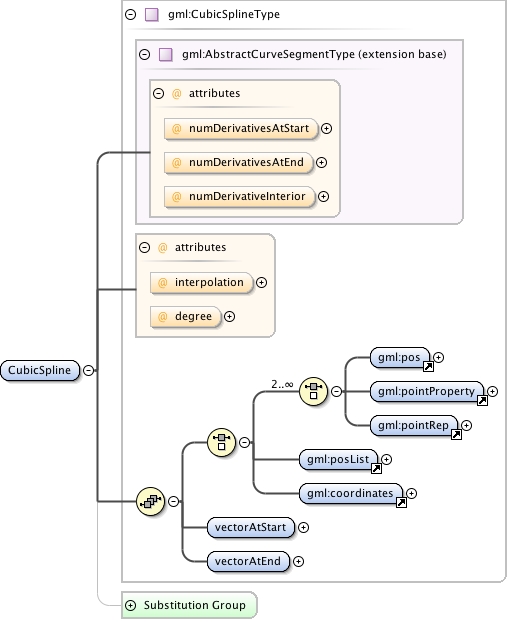

Diagram
Diagram index160.tmp#id251 index160.tmp#id252 index160.tmp#id253 index160.tmp#id250 index341.tmp#id265 index341.tmp#id267 index176.tmp#id128 index64.tmp#id254 index177.tmp#id258 index178.tmp#id259 index179.tmp#id129 index341.tmp#id262 index341.tmp#id264 index341.tmp#id249
Type gml:CubicSplineType
Type hierarchy
Properties
content: complex
Used by
Model (gml:pos | gml:pointProperty | gml:pointRep | gml:posList | gml:coordinates) , gml:vectorAtStart , gml:vectorAtEnd
Children gml:coordinates, gml:pointProperty, gml:pointRep, gml:pos, gml:posList, gml:vectorAtEnd, gml:vectorAtStart
Instance

<gml:CubicSpline degree="3" interpolation="cubicSpline" numDerivativeInterior="0" numDerivativesAtEnd="0" numDerivativesAtStart="0">
  <gml:pos axisLabels="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:pos>
  <gml:pointProperty xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointProperty>
  <gml:pointRep xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointRep>
  <gml:posList axisLabels="" count="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:posList>
  <gml:coordinates cs="," decimal="." ts=" ">{1,1}</gml:coordinates>
  <gml:vectorAtStart axisLabels="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:vectorAtStart>
  <gml:vectorAtEnd axisLabels="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:vectorAtEnd>
</gml:CubicSpline>
Attributes
QName Type Fixed Default Use Annotation
degree integer 3 optional
interpolation gml:CurveInterpolationType cubicSpline optional
numDerivativeInterior integer 0 optional
numDerivativesAtEnd integer 0 optional
numDerivativesAtStart integer 0 optional
Source

<element name="CubicSpline" type="gml:CubicSplineType" substitutionGroup="gml:AbstractCurveSegment">
  <annotation>
    <documentation>The number of control points shall be at least three. vectorAtStart is the unit tangent vector at the start point of the spline. vectorAtEnd is the unit tangent vector at the end point of the spline. Only the direction of the vectors shall be used to determine the shape of the cubic spline, not their length. interpolation is fixed as "cubicSpline". degree shall be the degree of the polynomial used for the interpolation in this spline. Therefore the degree for a cubic spline is fixed to "3". The content model follows the general pattern for the encoding of curve segments.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
