Schema documentation for component gml:LineStringSegment

Showing:

Annotations

Attributes

Diagrams

Instances

Properties

Source

Used by

Element gml:LineStringSegment

Namespace

http://www.opengis.net/gml/3.2

Annotations

A LineStringSegment is a curve segment that is defined by two or more control points including the start and end point, with linear interpolation between them.
The content model follows the general pattern for the encoding of curve segments.

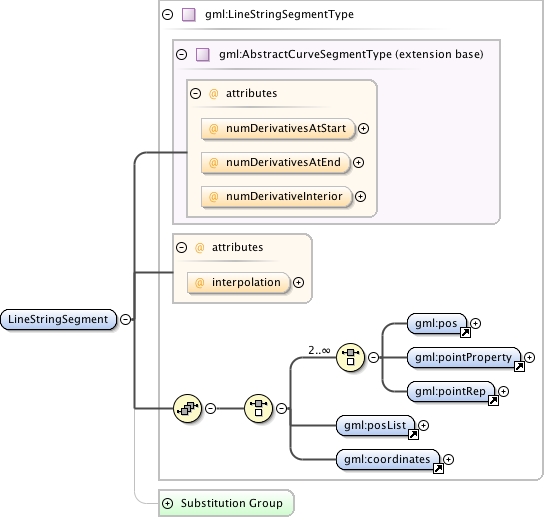

Diagram

Type

gml:LineStringSegmentType

Type hierarchy

gml:AbstractCurveSegmentType
- gml:LineStringSegmentType

Properties

content:

complex

Used by

Complex Types

gml:LineStringSegmentArrayPropertyType, womlcore:CombinedSegmentArrayPropertyType, womlcore:LineStringSegmentArrayPropertyType

Model

(gml:pos | gml:pointProperty | gml:pointRep | gml:posList | gml:coordinates)

Children

gml:coordinates, gml:pointProperty, gml:pointRep, gml:pos, gml:posList

Instance

<gml:LineStringSegment interpolation="linear" numDerivativeInterior="0" numDerivativesAtEnd="0" numDerivativesAtStart="0">
  <gml:pos axisLabels="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:pos>
  <gml:pointProperty xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointProperty>
  <gml:pointRep xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointRep>
  <gml:posList axisLabels="" count="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:posList>
  <gml:coordinates cs="," decimal="." ts=" ">{1,1}</gml:coordinates>
</gml:LineStringSegment>

Attributes

QName	Type	Fixed	Default	Use
interpolation	gml:CurveInterpolationType	linear		optional
numDerivativeInterior	integer		0	optional
numDerivativesAtEnd	integer		0	optional
numDerivativesAtStart	integer		0	optional

Source

<element name="LineStringSegment" type="gml:LineStringSegmentType" substitutionGroup="gml:AbstractCurveSegment">
  <annotation>
    <documentation>A LineStringSegment is a curve segment that is defined by two or more control points including the start and end point, with linear interpolation between them. The content model follows the general pattern for the encoding of curve segments.</documentation>
  </annotation>
</element>

Schema location

http://schemas.opengis.net/gml/3.2.1/geometryPrimitives.xsd
