Element gml:TimeOrdinalEra
Namespace http://www.opengis.net/gml/3.2
Annotations

Its content model follows the pattern of gml:TimeEdge, inheriting standard properties from gml:DefinitionType, and adding gml:start, gml:end and gml:extent properties, a set of gml:member properties which indicate ordered gml:TimeOrdinalEra elements, and a gml:group property which points to the parent era.
The recursive inclusion of gml:TimeOrdinalEra elements allow the construction of an arbitrary depth hierarchical ordinal reference schema, such that an ordinal era at a given level of the hierarchy includes a sequence of shorter, coterminous ordinal eras.

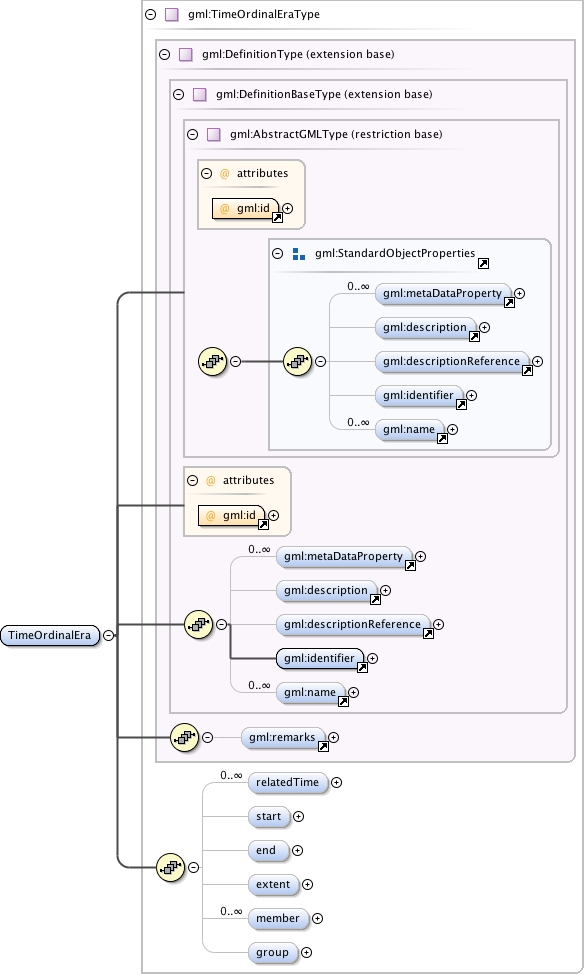

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index149.tmp#id581 index150.tmp#id582 index151.tmp#id580 index686.tmp#id1950 index686.tmp#id1951 index686.tmp#id1965 index686.tmp#id1966 index686.tmp#id1967 index686.tmp#id1968 index686.tmp#id1949
Type gml:TimeOrdinalEraType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier , gml:name* , gml:remarks{0,1} , gml:relatedTime* , gml:start{0,1} , gml:end{0,1} , gml:extent{0,1} , gml:member* , gml:group{0,1}
Children gml:description, gml:descriptionReference, gml:end, gml:extent, gml:group, gml:identifier, gml:member, gml:metaDataProperty, gml:name, gml:relatedTime, gml:remarks, gml:start
Instance

<gml:TimeOrdinalEra gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:TimeOrdinalEra>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="TimeOrdinalEra" type="gml:TimeOrdinalEraType">
  <annotation>
    <documentation>Its content model follows the pattern of gml:TimeEdge, inheriting standard properties from gml:DefinitionType, and adding gml:start, gml:end and gml:extent properties, a set of gml:member properties which indicate ordered gml:TimeOrdinalEra elements, and a gml:group property which points to the parent era. The recursive inclusion of gml:TimeOrdinalEra elements allow the construction of an arbitrary depth hierarchical ordinal reference schema, such that an ordinal era at a given level of the hierarchy includes a sequence of shorter, coterminous ordinal eras.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/temporalReferenceSystems.xsd
