Element gml:UnitDefinition
Namespace http://www.opengis.net/gml/3.2
Annotations

A gml:UnitDefinition is a general definition of a unit of measure. This generic element is used only for units for which no relationship with other units or units systems is known.
The content model of gml:UnitDefinition adds three additional properties to gml:Definition, gml:quantityType, gml:quantityTypeReference and gml:catalogSymbol.
The gml:catalogSymbol property optionally gives the short symbol used for this unit. This element is usually used when the relationship of this unit to other units or units systems is unknown.

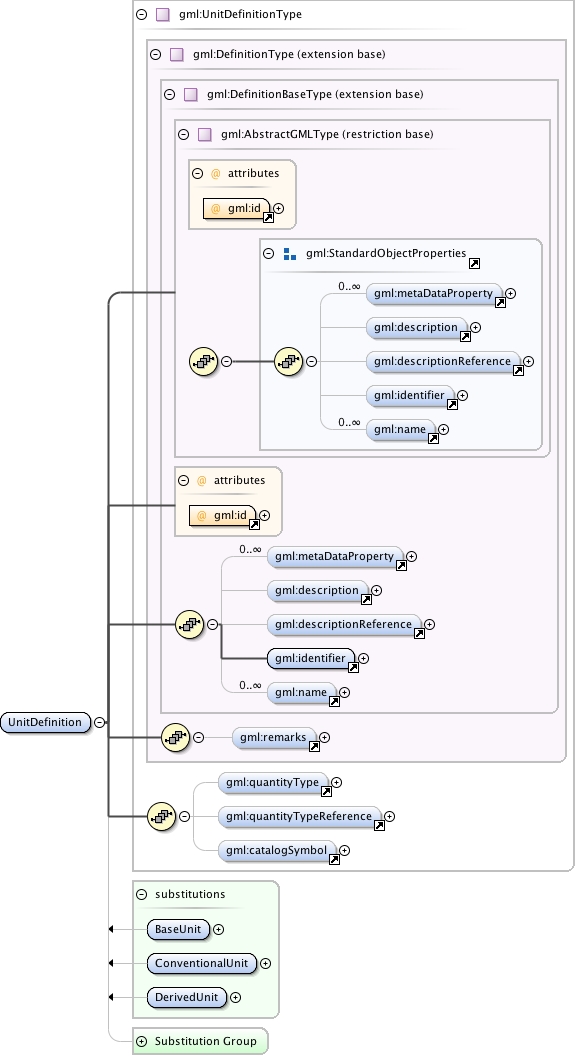

Diagram
Diagram index2.tmp#id78 index3.tmp#id72 index4.tmp#id93 index5.tmp#id95 index6.tmp#id99 index7.tmp#id104 index8.tmp#id71 index9.tmp#id70 index2.tmp#id78 index3.tmp#id72 index4.tmp#id93 index5.tmp#id95 index6.tmp#id99 index7.tmp#id104 index87.tmp#id607 index88.tmp#id608 index89.tmp#id606 index155.tmp#id609 index156.tmp#id610 index157.tmp#id611 index158.tmp#id605 index1249.tmp#id601 index1250.tmp#id603 index1251.tmp#id602
Type gml:UnitDefinitionType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier , gml:name* , gml:remarks{0,1} , gml:quantityType{0,1} , gml:quantityTypeReference{0,1} , gml:catalogSymbol{0,1}
Children gml:catalogSymbol, gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, gml:quantityType, gml:quantityTypeReference, gml:remarks
Instance

<gml:UnitDefinition gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:UnitDefinition>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="UnitDefinition" type="gml:UnitDefinitionType" substitutionGroup="gml:Definition">
  <annotation>
    <documentation>A gml:UnitDefinition is a general definition of a unit of measure. This generic element is used only for units for which no relationship with other units or units systems is known. The content model of gml:UnitDefinition adds three additional properties to gml:Definition, gml:quantityType, gml:quantityTypeReference and gml:catalogSymbol. The gml:catalogSymbol property optionally gives the short symbol used for this unit. This element is usually used when the relationship of this unit to other units or units systems is unknown.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/units.xsd
