Schema documentation for metobjects-point.xsd

Showing:

Annotations

Attributes

Diagrams

Instances

Properties

Source

Used by

Included schema metobjects-point.xsd

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Annotations

<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p>Point-based Conceptual Model objects (a.k.a Meteorological Objects) used at Finnish Meteorological Institute as GML 3.1.1 Features.</p>
  <p>For detailed info see
    <a href="http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/metobjects-point.xsd.html">documentation</a>
  </p>
  <p>Author: Ilkka Rinne / FMI 2009.</p>
</html:div>

Properties

attribute form default:	unqualified
element form default:	qualified
version:	0.1

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

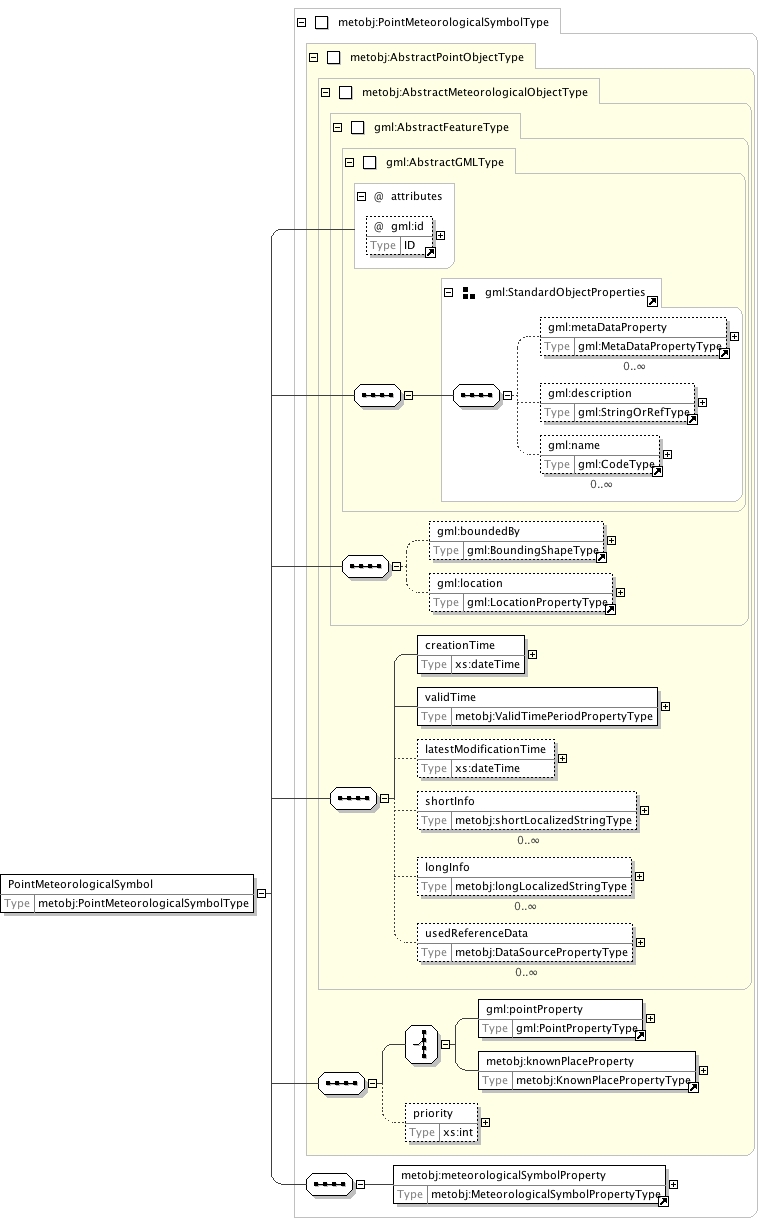

Element metobj:PointMeteorologicalSymbol

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

metobj:PointMeteorologicalSymbolType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractPointObjectType
      - metobj:PointMeteorologicalSymbolType

Properties

content:

complex

Used by

Complex Type

metobj:PointMeteorologicalSymbolPropertyType

Model

gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:creationTime , metobj:validTime , metobj:latestModificationTime{0,1} , metobj:shortInfo* , metobj:longInfo* , metobj:usedReferenceData* , (gml:pointProperty | metobj:knownPlaceProperty) , metobj:priority{0,1} , metobj:meteorologicalSymbolProperty

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, metobj:creationTime, metobj:knownPlaceProperty, metobj:latestModificationTime, metobj:longInfo, metobj:meteorologicalSymbolProperty, metobj:priority, metobj:shortInfo, metobj:usedReferenceData, metobj:validTime

Instance

<metobj:PointMeteorologicalSymbol gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</metobj:PointMeteorologicalSymbol>

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:element name="PointMeteorologicalSymbol" type="metobj:PointMeteorologicalSymbolType" substitutionGroup="metobj:_MeteorologicalObject"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

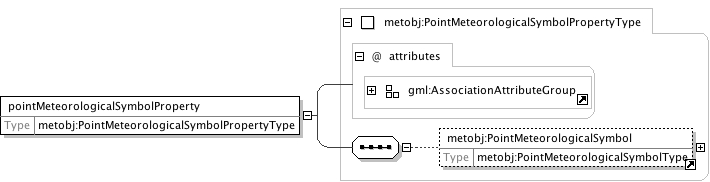

Element metobj:pointMeteorologicalSymbolProperty

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

metobj:PointMeteorologicalSymbolPropertyType

Properties

content:

complex

Model

metobj:PointMeteorologicalSymbol{0,1}

Children

metobj:PointMeteorologicalSymbol

Instance

<metobj:pointMeteorologicalSymbolProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <metobj:PointMeteorologicalSymbol gml:id="">{0,1}</metobj:PointMeteorologicalSymbol>
</metobj:pointMeteorologicalSymbolProperty>

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:remoteSchema

anyURI

optional

Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
the starting resource
onRequest - traverse from the starting resource to the ending
resource only on a post-loading event triggered for
this purpose
other - behavior is unconstrained; examine other markup in link
for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
presentation context
replace - load the resource in the same window, frame, pane, or
other presentation context
embed - load ending resource in place of the presentation of the
starting resource
other - behavior is unconstrained; examine other markup in the
link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Source

<xs:element name="pointMeteorologicalSymbolProperty" type="metobj:PointMeteorologicalSymbolPropertyType"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

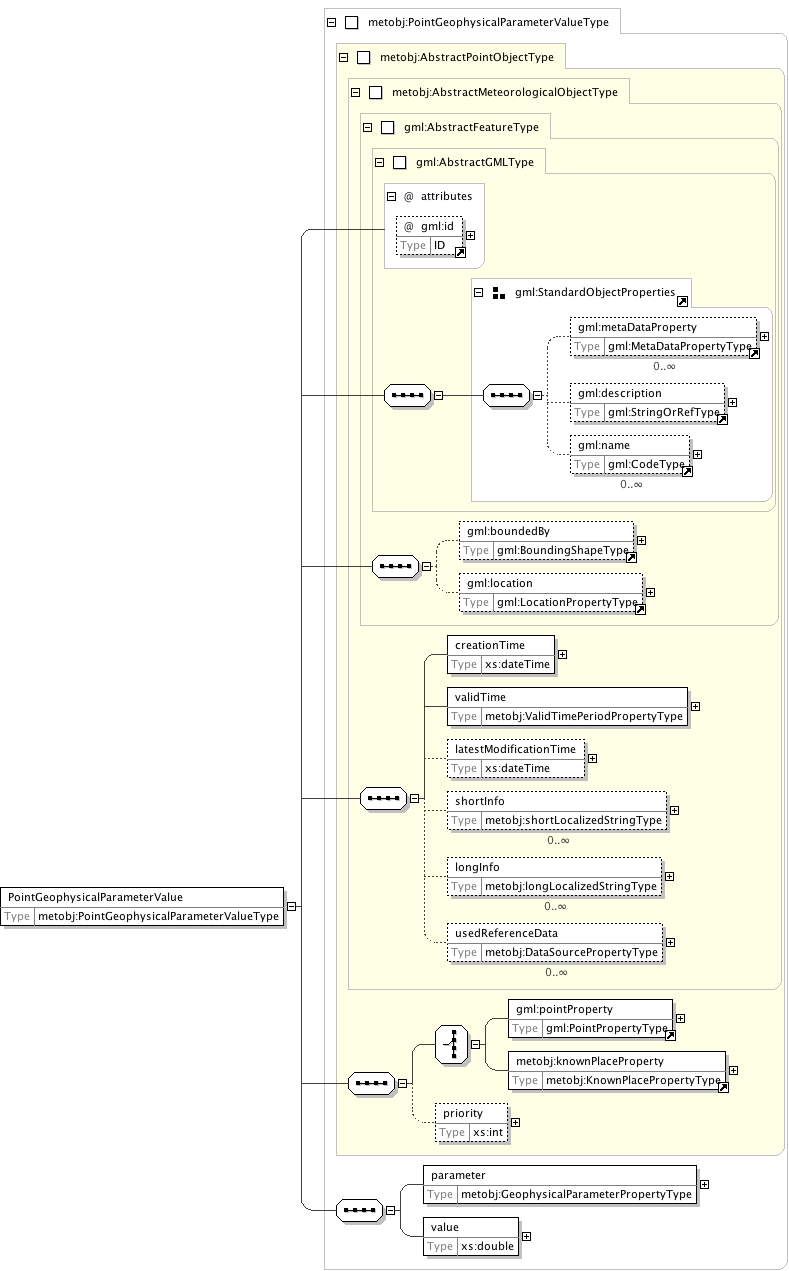

Element metobj:PointGeophysicalParameterValue

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

metobj:PointGeophysicalParameterValueType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractPointObjectType
      - metobj:PointGeophysicalParameterValueType

Properties

content:

complex

Used by

Complex Type

metobj:PointGeophysicalParameterValuePropertyType

Model

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, metobj:creationTime, metobj:knownPlaceProperty, metobj:latestModificationTime, metobj:longInfo, metobj:parameter, metobj:priority, metobj:shortInfo, metobj:usedReferenceData, metobj:validTime, metobj:value

Instance

<metobj:PointGeophysicalParameterValue gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</metobj:PointGeophysicalParameterValue>

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:element name="PointGeophysicalParameterValue" type="metobj:PointGeophysicalParameterValueType" substitutionGroup="metobj:_MeteorologicalObject"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

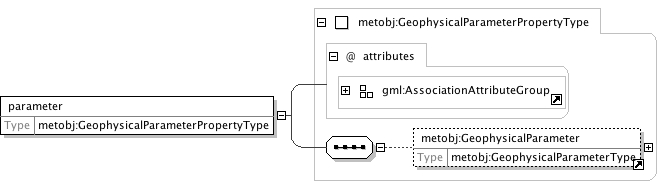

Element metobj:PointGeophysicalParameterValueType/metobj:parameter

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

metobj:GeophysicalParameterPropertyType

Properties

content:	complex
minOccurs:	1
maxOccurs:	1

Model

metobj:GeophysicalParameter{0,1}

Children

metobj:GeophysicalParameter

Instance

<metobj:parameter xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <metobj:GeophysicalParameter gml:id="">{0,1}</metobj:GeophysicalParameter>
</metobj:parameter>

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:remoteSchema

anyURI

optional

Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
the starting resource
onRequest - traverse from the starting resource to the ending
resource only on a post-loading event triggered for
this purpose
other - behavior is unconstrained; examine other markup in link
for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
presentation context
replace - load the resource in the same window, frame, pane, or
other presentation context
embed - load ending resource in place of the presentation of the
starting resource
other - behavior is unconstrained; examine other markup in the
link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Source

<xs:element name="parameter" type="metobj:GeophysicalParameterPropertyType" minOccurs="1" maxOccurs="1"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Element metobj:PointGeophysicalParameterValueType/metobj:value

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

xs:double

Properties

content:	simple
minOccurs:	1
maxOccurs:	1

Source

<xs:element name="value" type="xs:double" minOccurs="1" maxOccurs="1"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

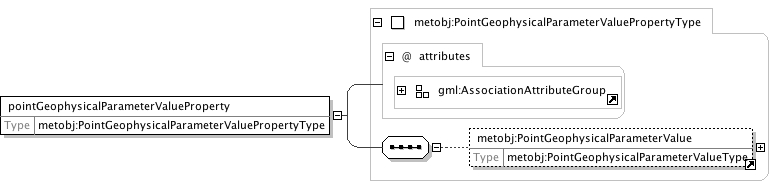

Element metobj:pointGeophysicalParameterValueProperty

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

metobj:PointGeophysicalParameterValuePropertyType

Properties

content:

complex

Model

metobj:PointGeophysicalParameterValue{0,1}

Children

metobj:PointGeophysicalParameterValue

Instance

<metobj:pointGeophysicalParameterValueProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <metobj:PointGeophysicalParameterValue gml:id="">{0,1}</metobj:PointGeophysicalParameterValue>
</metobj:pointGeophysicalParameterValueProperty>

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:remoteSchema

anyURI

optional

Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
the starting resource
onRequest - traverse from the starting resource to the ending
resource only on a post-loading event triggered for
this purpose
other - behavior is unconstrained; examine other markup in link
for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
presentation context
replace - load the resource in the same window, frame, pane, or
other presentation context
embed - load ending resource in place of the presentation of the
starting resource
other - behavior is unconstrained; examine other markup in the
link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Source

<xs:element name="pointGeophysicalParameterValueProperty" type="metobj:PointGeophysicalParameterValuePropertyType"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

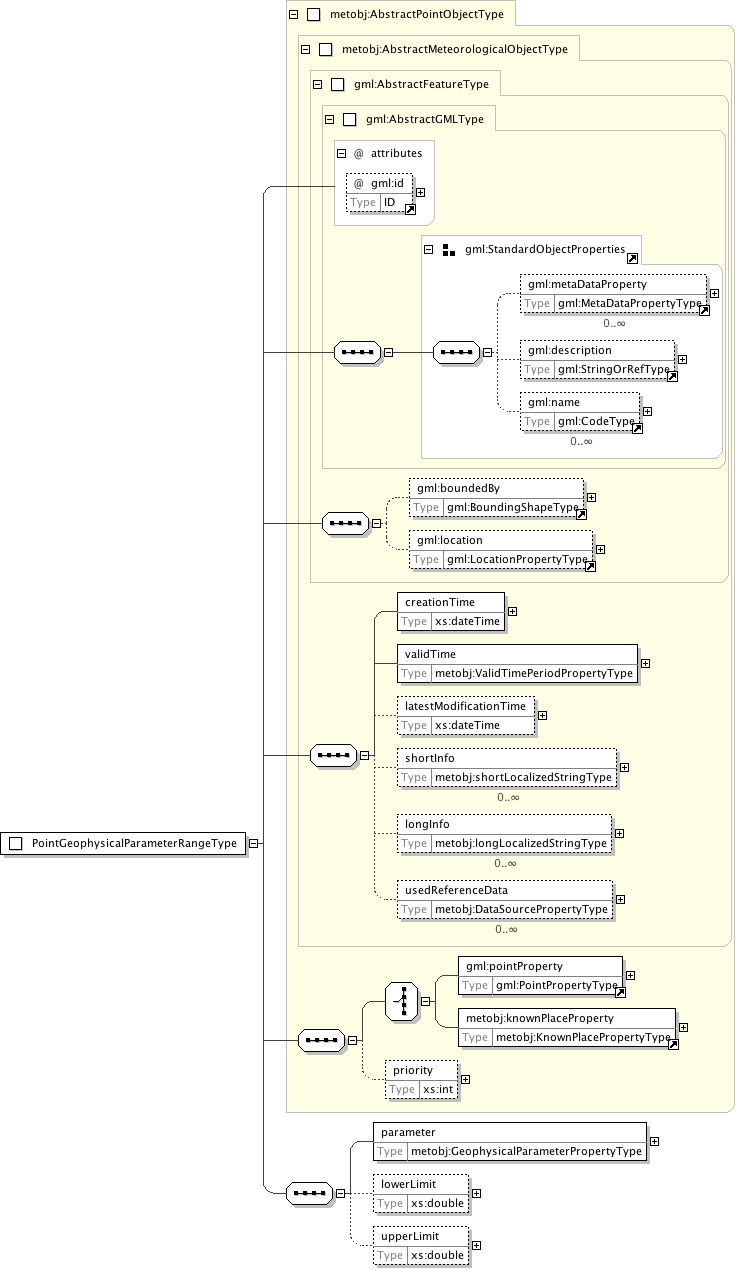

Element metobj:PointGeophysicalParameterRange

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

metobj:PointGeophysicalParameterRangeType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractPointObjectType
      - metobj:PointGeophysicalParameterRangeType

Properties

content:

complex

Used by

Complex Type

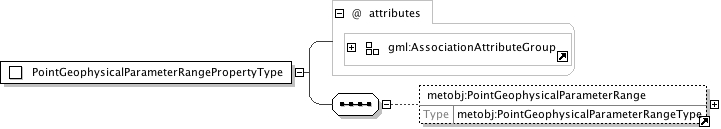

metobj:PointGeophysicalParameterRangePropertyType

Model

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, metobj:creationTime, metobj:knownPlaceProperty, metobj:latestModificationTime, metobj:longInfo, metobj:lowerLimit, metobj:parameter, metobj:priority, metobj:shortInfo, metobj:upperLimit, metobj:usedReferenceData, metobj:validTime

Instance

<metobj:PointGeophysicalParameterRange gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</metobj:PointGeophysicalParameterRange>

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:element name="PointGeophysicalParameterRange" type="metobj:PointGeophysicalParameterRangeType" substitutionGroup="metobj:_MeteorologicalObject"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Element metobj:PointGeophysicalParameterRangeType/metobj:parameter

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

metobj:GeophysicalParameterPropertyType

Properties

content:	complex
minOccurs:	1
maxOccurs:	1

Model

metobj:GeophysicalParameter{0,1}

Children

metobj:GeophysicalParameter

Instance

<metobj:parameter xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <metobj:GeophysicalParameter gml:id="">{0,1}</metobj:GeophysicalParameter>
</metobj:parameter>

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:remoteSchema

anyURI

optional

Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
the starting resource
onRequest - traverse from the starting resource to the ending
resource only on a post-loading event triggered for
this purpose
other - behavior is unconstrained; examine other markup in link
for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
presentation context
replace - load the resource in the same window, frame, pane, or
other presentation context
embed - load ending resource in place of the presentation of the
starting resource
other - behavior is unconstrained; examine other markup in the
link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Source

<xs:element name="parameter" type="metobj:GeophysicalParameterPropertyType" minOccurs="1" maxOccurs="1"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Element metobj:PointGeophysicalParameterRangeType/metobj:lowerLimit

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

xs:double

Properties

content:	simple
minOccurs:	0
maxOccurs:	1

Source

<xs:element name="lowerLimit" type="xs:double" minOccurs="0" maxOccurs="1"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Element metobj:PointGeophysicalParameterRangeType/metobj:upperLimit

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

xs:double

Properties

content:	simple
minOccurs:	0
maxOccurs:	1

Source

<xs:element name="upperLimit" type="xs:double" minOccurs="0" maxOccurs="1"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

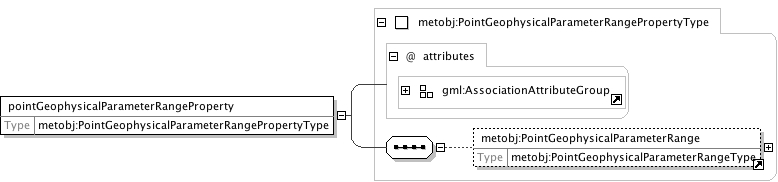

Element metobj:pointGeophysicalParameterRangeProperty

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Diagram

Type

metobj:PointGeophysicalParameterRangePropertyType

Properties

content:

complex

Model

metobj:PointGeophysicalParameterRange{0,1}

Children

metobj:PointGeophysicalParameterRange

Instance

<metobj:pointGeophysicalParameterRangeProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <metobj:PointGeophysicalParameterRange gml:id="">{0,1}</metobj:PointGeophysicalParameterRange>
</metobj:pointGeophysicalParameterRangeProperty>

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:remoteSchema

anyURI

optional

Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
the starting resource
onRequest - traverse from the starting resource to the ending
resource only on a post-loading event triggered for
this purpose
other - behavior is unconstrained; examine other markup in link
for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
presentation context
replace - load the resource in the same window, frame, pane, or
other presentation context
embed - load ending resource in place of the presentation of the
starting resource
other - behavior is unconstrained; examine other markup in the
link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Source

<xs:element name="pointGeophysicalParameterRangeProperty" type="metobj:PointGeophysicalParameterRangePropertyType"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Complex Type metobj:PointMeteorologicalSymbolType

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Annotations

A single meteorological symbol fixed at a geospatial point or
point-like location.

Diagram

Type

extension of metobj:AbstractPointObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractPointObjectType
      - metobj:PointMeteorologicalSymbolType

Used by

Element

metobj:PointMeteorologicalSymbol

Model

Children

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:complexType name="PointMeteorologicalSymbolType">
  <xs:annotation>
    <xs:documentation>A single meteorological symbol fixed at a geospatial point or point-like location.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="metobj:AbstractPointObjectType">
      <xs:sequence>
        <xs:element ref="metobj:meteorologicalSymbolProperty" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Complex Type metobj:PointMeteorologicalSymbolPropertyType

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Annotations

To be used when using this object type as property of n GML object
type according to the GML object-property-association model (it is not allowed for
GML Objects to contain other GML Objects as direct children). Enables referencing to
an existing object using xlink:href attribute.

Diagram

Used by

Element

metobj:pointMeteorologicalSymbolProperty

Model

metobj:PointMeteorologicalSymbol{0,1}

Children

metobj:PointMeteorologicalSymbol

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:remoteSchema

anyURI

optional

Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
the starting resource
onRequest - traverse from the starting resource to the ending
resource only on a post-loading event triggered for
this purpose
other - behavior is unconstrained; examine other markup in link
for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
presentation context
replace - load the resource in the same window, frame, pane, or
other presentation context
embed - load ending resource in place of the presentation of the
starting resource
other - behavior is unconstrained; examine other markup in the
link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Source

<xs:complexType name="PointMeteorologicalSymbolPropertyType">
  <xs:annotation>
    <xs:documentation>To be used when using this object type as property of n GML object type according to the GML object-property-association model (it is not allowed for GML Objects to contain other GML Objects as direct children). Enables referencing to an existing object using xlink:href attribute.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="metobj:PointMeteorologicalSymbol" minOccurs="0"/>
  </xs:sequence>
  <xs:attributeGroup ref="gml:AssociationAttributeGroup"/>
</xs:complexType>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Complex Type metobj:PointGeophysicalParameterValueType

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Annotations

<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p>Value of a geophysical parameter (temperature, pressure, humidity,..) at some point-like location and at a specific time. The truth value of this statement is not considered here, value may be speculative (forecast). The main intention for objects of this type is to represent observed and forecast parameter values on a map.</p>
  <p>Preferred font size in points for the label can specified with the preferredRenderingSize property by using "pt" as the uom (Unit Of Measure) attribute of "value".</p>
</html:div>

Diagram

Type

extension of metobj:AbstractPointObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractPointObjectType
      - metobj:PointGeophysicalParameterValueType

Used by

Element

metobj:PointGeophysicalParameterValue

Model

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, metobj:creationTime, metobj:knownPlaceProperty, metobj:latestModificationTime, metobj:longInfo, metobj:parameter, metobj:priority, metobj:shortInfo, metobj:usedReferenceData, metobj:validTime, metobj:value

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:complexType name="PointGeophysicalParameterValueType">
  <xs:annotation>
    <xs:documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p>Value of a geophysical parameter (temperature, pressure, humidity,..) at some point-like location and at a specific time. The truth value of this statement is not considered here, value may be speculative (forecast). The main intention for objects of this type is to represent observed and forecast parameter values on a map.</p>
        <p>Preferred font size in points for the label can specified with the preferredRenderingSize property by using "pt" as the uom (Unit Of Measure) attribute of "value".</p>
      </html:div>
    </xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="metobj:AbstractPointObjectType">
      <xs:sequence>
        <xs:element name="parameter" type="metobj:GeophysicalParameterPropertyType" minOccurs="1" maxOccurs="1"/>
        <xs:element name="value" type="xs:double" minOccurs="1" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Complex Type metobj:PointGeophysicalParameterValuePropertyType

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Annotations

To be used when using this object type as property of n GML object
type according to the GML object-property-association model (it is not allowed for
GML Objects to contain other GML Objects as direct children). Enables referencing to
an existing object using xlink:href attribute.

Diagram

Used by

Element

metobj:pointGeophysicalParameterValueProperty

Model

metobj:PointGeophysicalParameterValue{0,1}

Children

metobj:PointGeophysicalParameterValue

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:remoteSchema

anyURI

optional

Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
the starting resource
onRequest - traverse from the starting resource to the ending
resource only on a post-loading event triggered for
this purpose
other - behavior is unconstrained; examine other markup in link
for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
presentation context
replace - load the resource in the same window, frame, pane, or
other presentation context
embed - load ending resource in place of the presentation of the
starting resource
other - behavior is unconstrained; examine other markup in the
link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Source

<xs:complexType name="PointGeophysicalParameterValuePropertyType">
  <xs:annotation>
    <xs:documentation>To be used when using this object type as property of n GML object type according to the GML object-property-association model (it is not allowed for GML Objects to contain other GML Objects as direct children). Enables referencing to an existing object using xlink:href attribute.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="metobj:PointGeophysicalParameterValue" minOccurs="0"/>
  </xs:sequence>
  <xs:attributeGroup ref="gml:AssociationAttributeGroup"/>
</xs:complexType>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Complex Type metobj:PointGeophysicalParameterRangeType

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Annotations

<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p>Value range of a geophysical parameter (temperature, pressure, humidity,..) at some point-like location and at a specific time. The truth value of this statement is not considered here, value may be speculative (forecast). The main intention for objects of this type is to represent forecast parameter value ranges on a map.</p>
  <p>Preferred font size in points for the label can specified with the preferredRenderingSize property by using "pt" as the uom (Unit Of Measure) attribute of "value".</p>
</html:div>

Diagram

Type

extension of metobj:AbstractPointObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractPointObjectType
      - metobj:PointGeophysicalParameterRangeType

Used by

Element

metobj:PointGeophysicalParameterRange

Model

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, metobj:creationTime, metobj:knownPlaceProperty, metobj:latestModificationTime, metobj:longInfo, metobj:lowerLimit, metobj:parameter, metobj:priority, metobj:shortInfo, metobj:upperLimit, metobj:usedReferenceData, metobj:validTime

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:complexType name="PointGeophysicalParameterRangeType">
  <xs:annotation>
    <xs:documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p>Value range of a geophysical parameter (temperature, pressure, humidity,..) at some point-like location and at a specific time. The truth value of this statement is not considered here, value may be speculative (forecast). The main intention for objects of this type is to represent forecast parameter value ranges on a map.</p>
        <p>Preferred font size in points for the label can specified with the preferredRenderingSize property by using "pt" as the uom (Unit Of Measure) attribute of "value".</p>
      </html:div>
    </xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="metobj:AbstractPointObjectType">
      <xs:sequence>
        <xs:element name="parameter" type="metobj:GeophysicalParameterPropertyType" minOccurs="1" maxOccurs="1"/>
        <xs:element name="lowerLimit" type="xs:double" minOccurs="0" maxOccurs="1"/>
        <xs:element name="upperLimit" type="xs:double" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd

Complex Type metobj:PointGeophysicalParameterRangePropertyType

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/13

Annotations

To be used when using this object type as property of n GML object
type according to the GML object-property-association model (it is not allowed for
GML Objects to contain other GML Objects as direct children). Enables referencing to
an existing object using xlink:href attribute.

Diagram

Used by

Element

metobj:pointGeophysicalParameterRangeProperty

Model

metobj:PointGeophysicalParameterRange{0,1}

Children

metobj:PointGeophysicalParameterRange

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:remoteSchema

anyURI

optional

Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
the starting resource
onRequest - traverse from the starting resource to the ending
resource only on a post-loading event triggered for
this purpose
other - behavior is unconstrained; examine other markup in link
for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
presentation context
replace - load the resource in the same window, frame, pane, or
other presentation context
embed - load ending resource in place of the presentation of the
starting resource
other - behavior is unconstrained; examine other markup in the
link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Source

<xs:complexType name="PointGeophysicalParameterRangePropertyType">
  <xs:annotation>
    <xs:documentation>To be used when using this object type as property of n GML object type according to the GML object-property-association model (it is not allowed for GML Objects to contain other GML Objects as direct children). Enables referencing to an existing object using xlink:href attribute.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="metobj:PointGeophysicalParameterRange" minOccurs="0"/>
  </xs:sequence>
  <xs:attributeGroup ref="gml:AssociationAttributeGroup"/>
</xs:complexType>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/13/metobjects-point.xsd
