Showing:

Annotations
Attributes
Diagrams
Properties
Source
Used by
Imported schema dc.xsd
Namespace http://purl.org/dc/elements/1.1/
Annotations

DCMES 1.1 XML Schema
XML Schema for http://purl.org/dc/elements/1.1/ namespace

Created 2008-02-11

Created by

Tim Cole (t-cole3@uiuc.edu)
Tom Habing (thabing@uiuc.edu)
Jane Hunter (jane@dstc.edu.au)
Pete Johnston (p.johnston@ukoln.ac.uk),
Carl Lagoze (lagoze@cs.cornell.edu)

This schema declares XML elements for the 15 DC elements from the
http://purl.org/dc/elements/1.1/ namespace.

It defines a complexType SimpleLiteral which permits mixed content
and makes the xml:lang attribute available. It disallows child elements by
use of minOcccurs/maxOccurs.

However, this complexType does permit the derivation of other complexTypes
which would permit child elements.

All elements are declared as substitutable for the abstract element any,
which means that the default type for all elements is dc:SimpleLiteral.
Properties
attribute form default: unqualified
element form default: qualified
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element title
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="title" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element creator
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="creator" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element subject
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="subject" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element description
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="description" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element publisher
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="publisher" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element contributor
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="contributor" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element date
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="date" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element type
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="type" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element format
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="format" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element identifier
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="identifier" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element source
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="source" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element language
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="language" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element relation
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="relation" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element coverage
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="coverage" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element rights
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram
Used by
Source

<xs:element name="rights" substitutionGroup="any"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element any
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram docindex19.tmp#id130 docindex20.tmp#id840 docindex20.tmp#id810 docindex20.tmp#id818 docindex20.tmp#id806 docindex20.tmp#id811 docindex20.tmp#id808 docindex20.tmp#id813 docindex20.tmp#id814 docindex20.tmp#id816 docindex20.tmp#id809 docindex20.tmp#id817 docindex20.tmp#id819 docindex20.tmp#id815 docindex20.tmp#id807 docindex20.tmp#id804 docindex20.tmp#id812
Type SimpleLiteral
Properties
content: complex
abstract: true
Used by
Element Group elementsGroup
Model ANY element from ANY namespace
Attributes
QName Type Fixed Default Use Annotation
xml:lang xs:language optional
In due course, we should install the relevant ISO 2- and 3-letter
codes as the enumerated possible values . . .
Source

<xs:element name="any" type="SimpleLiteral" abstract="true"/>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd

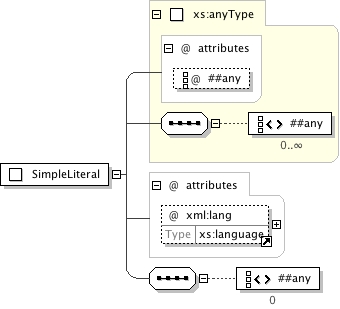

Complex Type SimpleLiteral
Namespace http://purl.org/dc/elements/1.1/
Annotations

This is the default type for all of the DC elements.
It permits text content only with optional
xml:lang attribute.
Text is allowed because mixed="true", but sub-elements
are disallowed because minOccurs="0" and maxOccurs="0"
are on the xs:any tag.

This complexType allows for restriction or extension permitting
child elements.
Diagram
Diagram docindex19.tmp#id130
Used by
Element any
Model ANY element from ANY namespace
Attributes
QName Type Fixed Default Use Annotation
xml:lang xs:language optional
In due course, we should install the relevant ISO 2- and 3-letter
codes as the enumerated possible values . . .
Source

<xs:complexType name="SimpleLiteral">
  <xs:annotation>
    <xs:documentation xml:lang="en">This is the default type for all of the DC elements. It permits text content only with optional xml:lang attribute. Text is allowed because mixed="true", but sub-elements are disallowed because minOccurs="0" and maxOccurs="0" are on the xs:any tag. This complexType allows for restriction or extension permitting child elements.</xs:documentation>
  </xs:annotation>
  <xs:complexContent mixed="true">
    <xs:restriction base="xs:anyType">
      <xs:sequence>
        <xs:any processContents="lax" minOccurs="0" maxOccurs="0"/>
      </xs:sequence>
      <xs:attribute ref="xml:lang" use="optional"/>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd

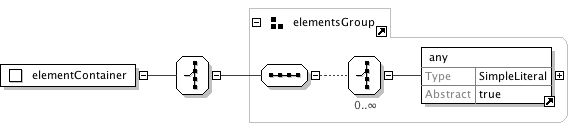

Complex Type elementContainer
Namespace http://purl.org/dc/elements/1.1/
Annotations

This complexType is included as a convenience for schema authors who need to define a root
or container element for all of the DC elements.
Diagram
Diagram docindex20.tmp#id805 docindex20.tmp#id841
Model ((any))
Children any
Source

<xs:complexType name="elementContainer">
  <xs:annotation>
    <xs:documentation xml:lang="en">This complexType is included as a convenience for schema authors who need to define a root or container element for all of the DC elements.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:group ref="elementsGroup"/>
  </xs:choice>
</xs:complexType>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
Element Group elementsGroup
Namespace http://purl.org/dc/elements/1.1/
Diagram
Diagram docindex20.tmp#id805
Used by
Complex Type elementContainer
Model (any)
Children any
Source

<xs:group name="elementsGroup">
  <xs:annotation>
    <xs:documentation xml:lang="en">This group is included as a convenience for schema authors who need to refer to all the elements in the http://purl.org/dc/elements/1.1/ namespace.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="any"/>
    </xs:choice>
  </xs:sequence>
</xs:group>
Schema location http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
