Schema documentation for component metobj:

Showing:

Attributes

Diagrams

Properties

Source

Used by

Element metobj:_SurfaceObject

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

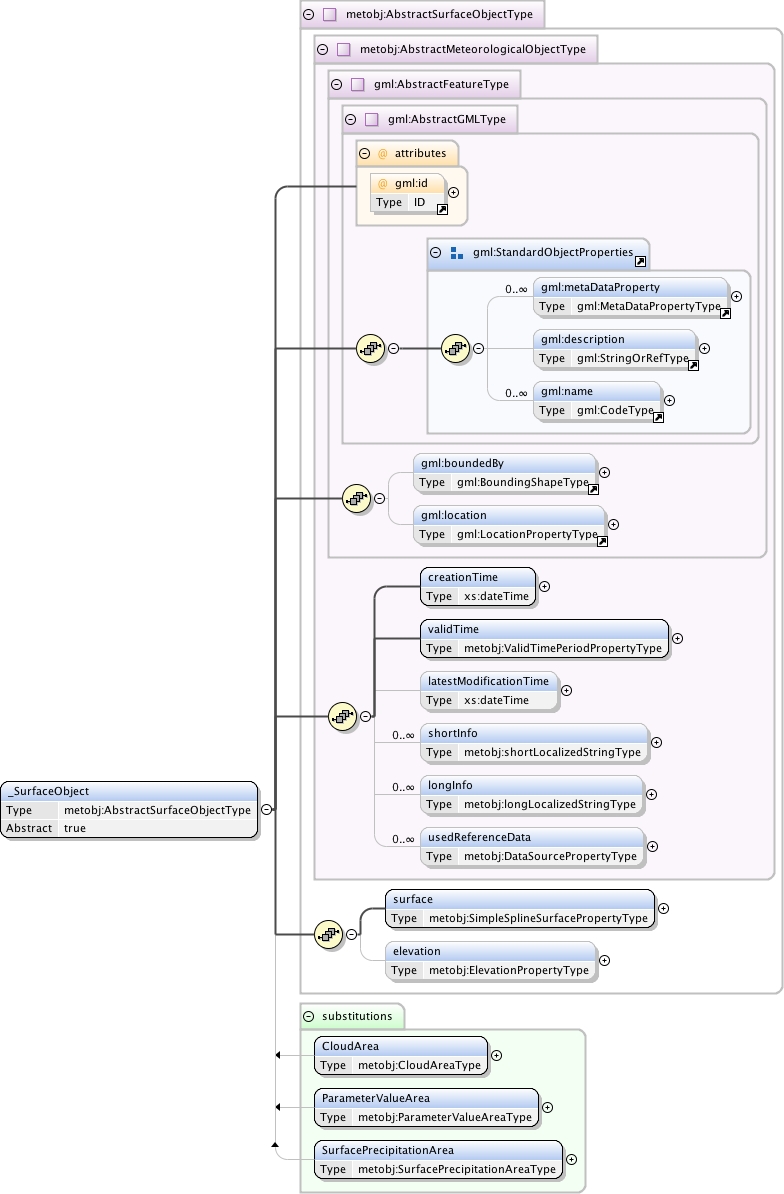

Diagram

Type

metobj:AbstractSurfaceObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractSurfaceObjectType

Properties

content:	complex
abstract:	true

Used by

Complex Type

metobj:SurfaceObjectPropertyType

Model

gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:creationTime , metobj:validTime , metobj:latestModificationTime{0,1} , metobj:shortInfo* , metobj:longInfo* , metobj:usedReferenceData* , metobj:surface , metobj:elevation{0,1}

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, metobj:creationTime, metobj:elevation, metobj:latestModificationTime, metobj:longInfo, metobj:shortInfo, metobj:surface, metobj:usedReferenceData, metobj:validTime

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<xs:element name="_SurfaceObject" type="metobj:AbstractSurfaceObjectType" abstract="true" substitutionGroup="metobj:_MeteorologicalObject"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-base.xsd
