Element metobj:AbstractMeteorologicalObjectType/metobj:creationTime
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram
Type xs:dateTime
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Source

<xs:element name="creationTime" type="xs:dateTime" minOccurs="1" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-base.xsd

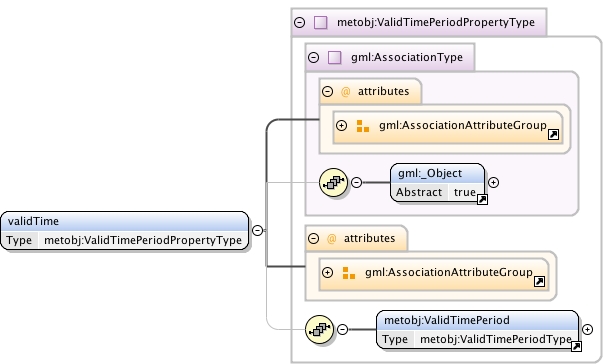

Element metobj:AbstractMeteorologicalObjectType/metobj:validTime
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram docindex0.tmp#id37 docindex133.tmp#id124 docindex134.tmp#id123 docindex0.tmp#id37 docindex258.tmp#id152 docindex259.tmp#id122
Type metobj:ValidTimePeriodPropertyType
Type hierarchy
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model metobj:ValidTimePeriod
Children metobj:ValidTimePeriod
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
        of traversal from the starting resource to the ending resource;
        it's value should be treated as follows:
        onLoad - traverse to the ending resource immediately on loading
                 the starting resource
        onRequest - traverse from the starting resource to the ending
                    resource only on a post-loading event triggered for
                    this purpose
        other - behavior is unconstrained; examine other markup in link
                for hints
        none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
        of the ending resource on traversal from the starting resource; it's
        value should be treated as follows:
        new - load ending resource in a new window, frame, pane, or other
              presentation context
        replace - load the resource in the same window, frame, pane, or
                  other presentation context
        embed - load ending resource in place of the presentation of the
                starting resource
        other - behavior is unconstrained; examine other markup in the
                link for hints
        none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<xs:element name="validTime" type="metobj:ValidTimePeriodPropertyType" minOccurs="1" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-base.xsd
Element metobj:AbstractMeteorologicalObjectType/metobj:latestModificationTime
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram
Type xs:dateTime
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<xs:element name="latestModificationTime" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-base.xsd

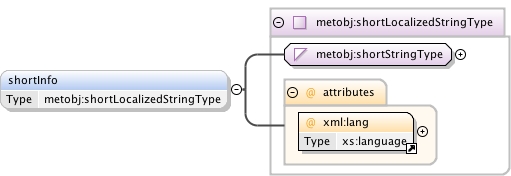

Element metobj:AbstractMeteorologicalObjectType/metobj:shortInfo
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram docindex207.tmp#id185 docindex145.tmp#id186 docindex208.tmp#id184
Type metobj:shortLocalizedStringType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
xml:lang xs:language required
In due course, we should install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values . . .
Source

<xs:element name="shortInfo" type="metobj:shortLocalizedStringType" minOccurs="0" maxOccurs="unbounded"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-base.xsd
Element metobj:AbstractMeteorologicalObjectType/metobj:longInfo
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram docindex295.tmp#id189 docindex145.tmp#id186 docindex296.tmp#id188
Type metobj:longLocalizedStringType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
xml:lang xs:language required
In due course, we should install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values . . .
Source

<xs:element name="longInfo" type="metobj:longLocalizedStringType" minOccurs="0" maxOccurs="unbounded"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-base.xsd

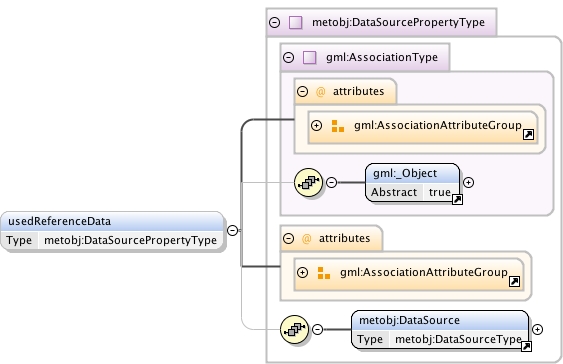

Element metobj:AbstractMeteorologicalObjectType/metobj:usedReferenceData
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram docindex0.tmp#id37 docindex133.tmp#id124 docindex134.tmp#id123 docindex0.tmp#id37 docindex176.tmp#id158 docindex177.tmp#id191
Type metobj:DataSourcePropertyType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model metobj:DataSource
Children metobj:DataSource
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
        of traversal from the starting resource to the ending resource;
        it's value should be treated as follows:
        onLoad - traverse to the ending resource immediately on loading
                 the starting resource
        onRequest - traverse from the starting resource to the ending
                    resource only on a post-loading event triggered for
                    this purpose
        other - behavior is unconstrained; examine other markup in link
                for hints
        none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
        of the ending resource on traversal from the starting resource; it's
        value should be treated as follows:
        new - load ending resource in a new window, frame, pane, or other
              presentation context
        replace - load the resource in the same window, frame, pane, or
                  other presentation context
        embed - load ending resource in place of the presentation of the
                starting resource
        other - behavior is unconstrained; examine other markup in the
                link for hints
        none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<xs:element name="usedReferenceData" type="metobj:DataSourcePropertyType" minOccurs="0" maxOccurs="unbounded"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-base.xsd

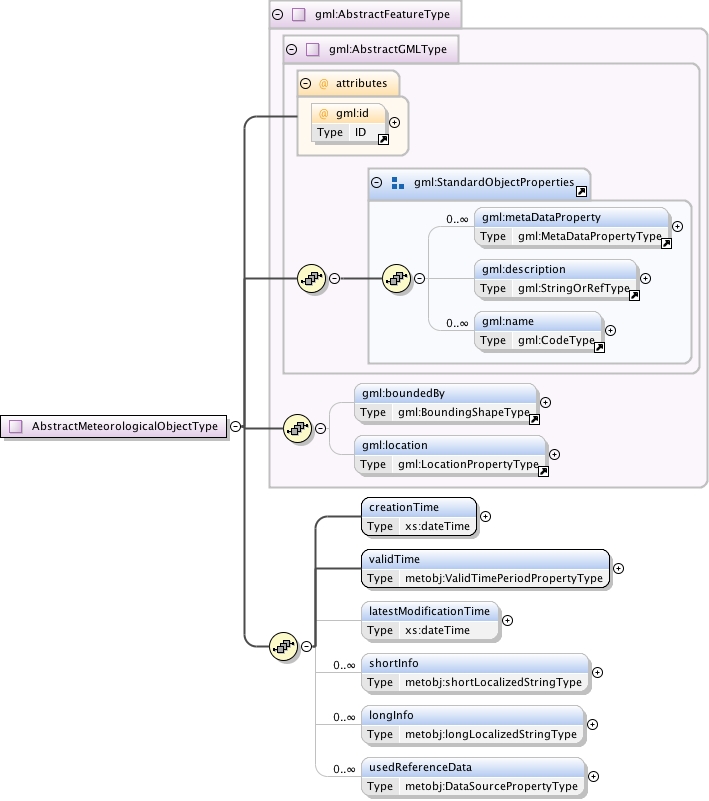

Complex Type metobj:AbstractMeteorologicalObjectType
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Annotations

Abstract parent type for all Meteorological
                Objects.
Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex12.tmp#id54 docindex13.tmp#id84 docindex14.tmp#id31 docindex15.tmp#id120 docindex15.tmp#id121 docindex15.tmp#id182 docindex15.tmp#id183 docindex15.tmp#id187 docindex15.tmp#id190
Type extension of gml:AbstractFeatureType
Type hierarchy
Properties
abstract: true
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:creationTime , metobj:validTime , metobj:latestModificationTime{0,1} , metobj:shortInfo* , metobj:longInfo* , metobj:usedReferenceData*
Children gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, metobj:creationTime, metobj:latestModificationTime, metobj:longInfo, metobj:shortInfo, metobj:usedReferenceData, metobj:validTime
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<xs:complexType name="AbstractMeteorologicalObjectType" abstract="true">
  <xs:annotation>
    <xs:documentation>Abstract parent type for all Meteorological Objects.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="gml:AbstractFeatureType">
      <xs:sequence>
        <xs:element name="creationTime" type="xs:dateTime" minOccurs="1" maxOccurs="1"/>
        <xs:element name="validTime" type="metobj:ValidTimePeriodPropertyType" minOccurs="1" maxOccurs="1"/>
        <xs:element name="latestModificationTime" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
        <xs:element name="shortInfo" type="metobj:shortLocalizedStringType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="longInfo" type="metobj:longLocalizedStringType" minOccurs="0" maxOccurs="unbounded"/>
        <xs:element name="usedReferenceData" type="metobj:DataSourcePropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-base.xsd
