Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows: onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation context replace - load the resource in the same window, frame, pane, or other presentation context embed - load ending resource in place of the presentation of the starting resource other - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows: onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation context replace - load the resource in the same window, frame, pane, or other presentation context embed - load ending resource in place of the presentation of the starting resource other - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows: onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation context replace - load the resource in the same window, frame, pane, or other presentation context embed - load ending resource in place of the presentation of the starting resource other - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows: onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation context replace - load the resource in the same window, frame, pane, or other presentation context embed - load ending resource in place of the presentation of the starting resource other - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows: onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation context replace - load the resource in the same window, frame, pane, or other presentation context embed - load ending resource in place of the presentation of the starting resource other - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained

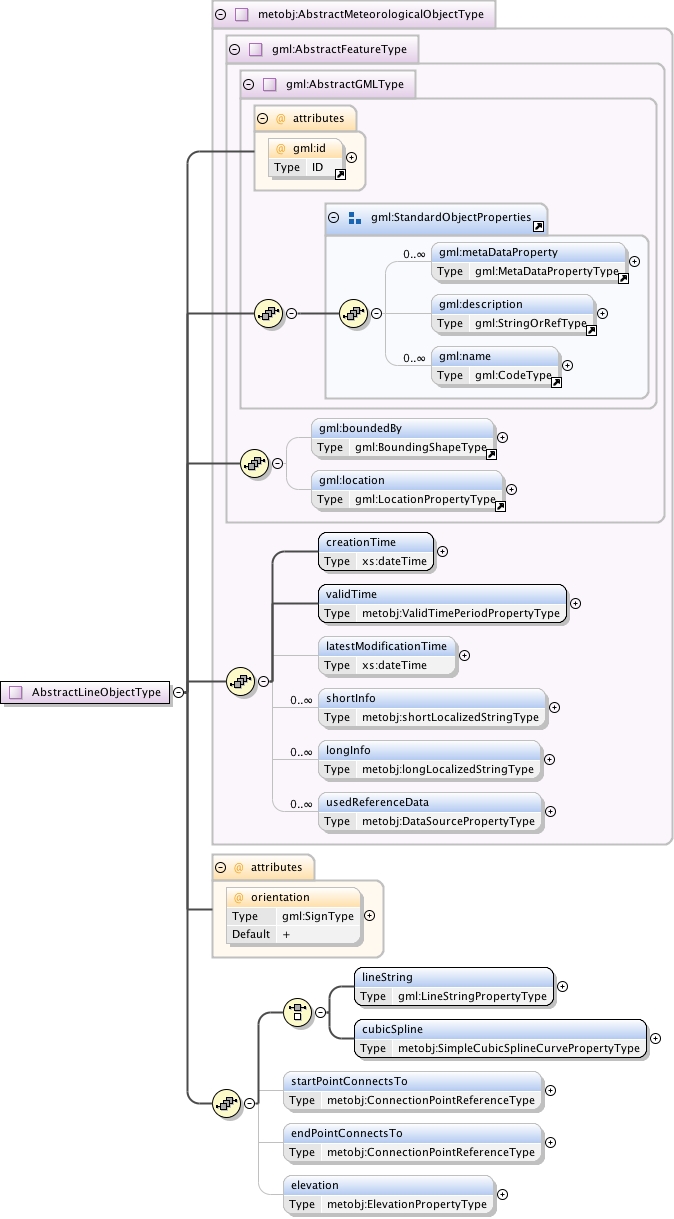

<html:div xmlns="http://www.w3.org/1999/xhtml"><p>Abstract parent type for Met Objects defined by a single line segment between an ordered set of geospatial points.</p><p>The points defined in each the given line segments should be considered as one consecutive array of geospatial points. If there are more that one segment, the first point (in the orientation order) of each of the segments following the first one is ignored (the first and the last point coordinates must always represent the same point). This is especially important when interpreting pointConnections indexes (see below). The segment type only affects the rendering of each segment.</p><p>The orientation of the line is defined by attribute "orientation", starting from the first position in the position list and ending to the last position if positive. This may or may not affect the semantics and the rendering of the line object (depending on whether the concrete types have direction or not).</p><p>If elevation property is given, its value must be added to possible height value of each of the points in the each line segment. If the CRS of the points is 2-dimensional, the value of the elevation should be interpreted as the static height value of each of the given (control)points.</p></html:div>
Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
<xs:complexType name="AbstractLineObjectType" abstract="true"><xs:annotation><xs:documentation><html:div xmlns="http://www.w3.org/1999/xhtml"><p>Abstract parent type for Met Objects defined by a single line segment between an ordered set of geospatial points.</p><p>The points defined in each the given line segments should be considered as one consecutive array of geospatial points. If there are more that one segment, the first point (in the orientation order) of each of the segments following the first one is ignored (the first and the last point coordinates must always represent the same point). This is especially important when interpreting pointConnections indexes (see below). The segment type only affects the rendering of each segment.</p><p>The orientation of the line is defined by attribute "orientation", starting from the first position in the position list and ending to the last position if positive. This may or may not affect the semantics and the rendering of the line object (depending on whether the concrete types have direction or not).</p><p>If elevation property is given, its value must be added to possible height value of each of the points in the each line segment. If the CRS of the points is 2-dimensional, the value of the elevation should be interpreted as the static height value of each of the given (control)points.</p></html:div></xs:documentation></xs:annotation><xs:complexContent><xs:extension base="metobj:AbstractMeteorologicalObjectType"><xs:sequence><xs:choice minOccurs="1" maxOccurs="1"><xs:element name="lineString" type="gml:LineStringPropertyType" minOccurs="1" maxOccurs="1"/><xs:element name="cubicSpline" type="metobj:SimpleCubicSplineCurvePropertyType" minOccurs="1" maxOccurs="1"/></xs:choice><xs:element name="startPointConnectsTo" type="metobj:ConnectionPointReferenceType" minOccurs="0" maxOccurs="1"/><xs:element name="endPointConnectsTo" type="metobj:ConnectionPointReferenceType" minOccurs="0" maxOccurs="1"/><xs:element name="elevation" type="metobj:ElevationPropertyType" minOccurs="0" maxOccurs="1"/></xs:sequence><xs:attribute name="orientation" type="gml:SignType" default="+" use="optional"/></xs:extension></xs:complexContent></xs:complexType>
