Schema documentation for component metobj:ColdFrontObjectType

Showing:

Annotations

Attributes

Diagrams

Source

Used by

Complex Type metobj:ColdFrontObjectType

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

Annotations

<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p>Concrete Met Object type for cold fronts.</p>
</html:div>

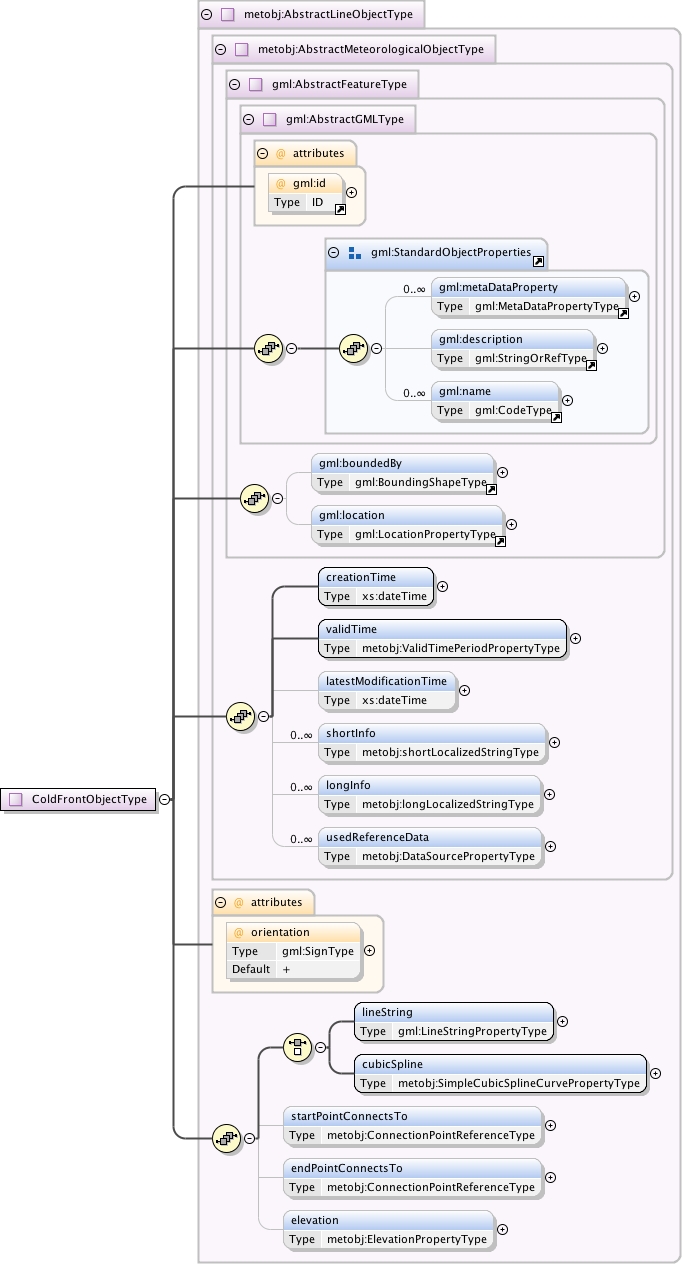

Diagram

Type

extension of metobj:AbstractLineObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractLineObjectType
      - metobj:ColdFrontObjectType

Used by

Element

metobj:ColdFront

Model

gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:creationTime , metobj:validTime , metobj:latestModificationTime{0,1} , metobj:shortInfo* , metobj:longInfo* , metobj:usedReferenceData* , (metobj:lineString | metobj:cubicSpline) , metobj:startPointConnectsTo{0,1} , metobj:endPointConnectsTo{0,1} , metobj:elevation{0,1}

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, metobj:creationTime, metobj:cubicSpline, metobj:elevation, metobj:endPointConnectsTo, metobj:latestModificationTime, metobj:lineString, metobj:longInfo, metobj:shortInfo, metobj:startPointConnectsTo, metobj:usedReferenceData, metobj:validTime

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

orientation

gml:SignType

optional

Source

<xs:complexType name="ColdFrontObjectType">
  <xs:annotation>
    <xs:documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p>Concrete Met Object type for cold fronts.</p>
      </html:div>
    </xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="metobj:AbstractLineObjectType"/>
  </xs:complexContent>
</xs:complexType>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-linear.xsd
