Schema documentation for component metobj:

Showing:

Attributes

Diagrams

Properties

Source

Used by

Element metobj:_LineObject

Namespace

http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

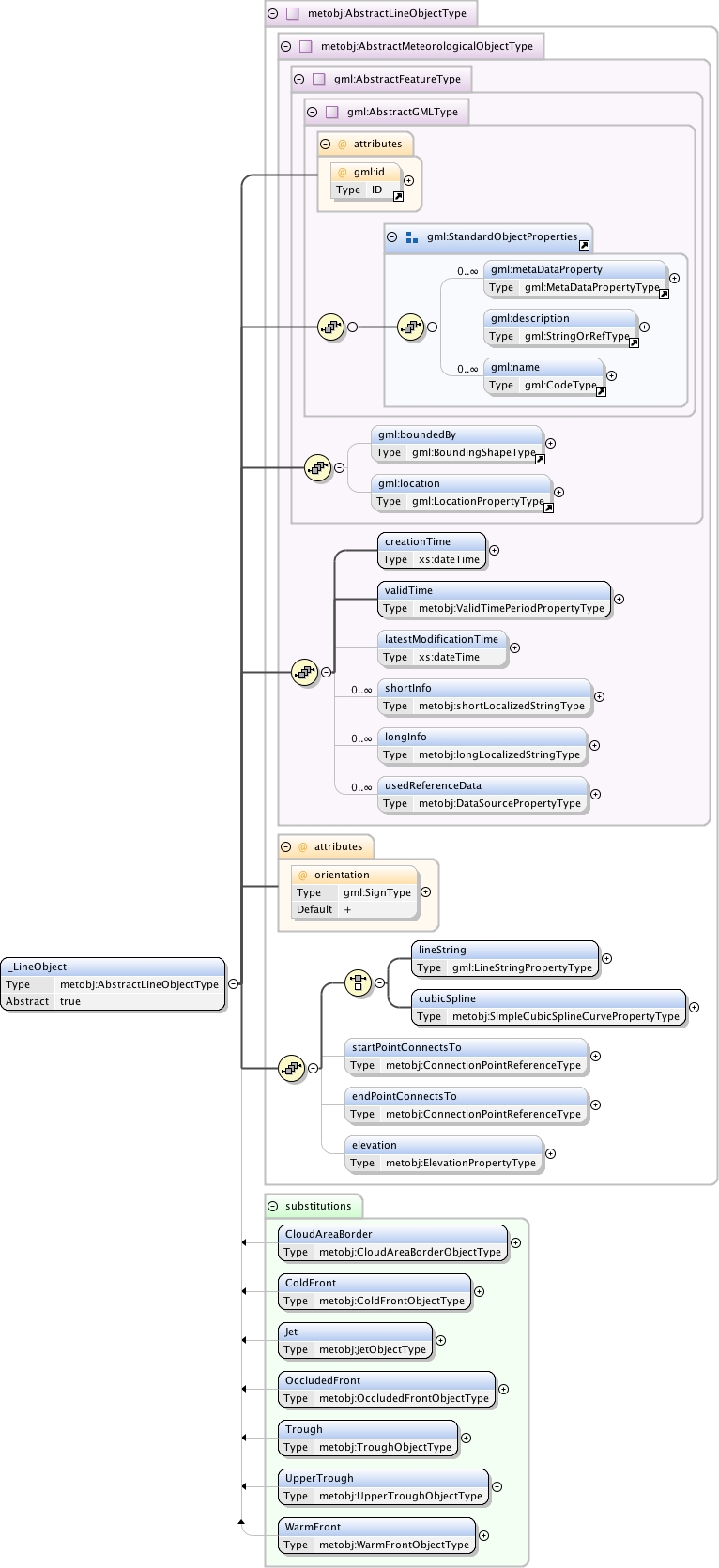

Diagram

Type

metobj:AbstractLineObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - metobj:AbstractMeteorologicalObjectType
    - metobj:AbstractLineObjectType

Properties

content:	complex
abstract:	true

Used by

Complex Type

metobj:LineObjectPropertyType

Model

gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:creationTime , metobj:validTime , metobj:latestModificationTime{0,1} , metobj:shortInfo* , metobj:longInfo* , metobj:usedReferenceData* , (metobj:lineString | metobj:cubicSpline) , metobj:startPointConnectsTo{0,1} , metobj:endPointConnectsTo{0,1} , metobj:elevation{0,1}

Children

gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, metobj:creationTime, metobj:cubicSpline, metobj:elevation, metobj:endPointConnectsTo, metobj:latestModificationTime, metobj:lineString, metobj:longInfo, metobj:shortInfo, metobj:startPointConnectsTo, metobj:usedReferenceData, metobj:validTime

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

optional

Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

orientation

gml:SignType

optional

Source

<xs:element name="_LineObject" type="metobj:AbstractLineObjectType" abstract="true" substitutionGroup="metobj:_MeteorologicalObject"/>

Schema location

http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-base.xsd
