Element metobj:NumericalModelRunType/metobj:model
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

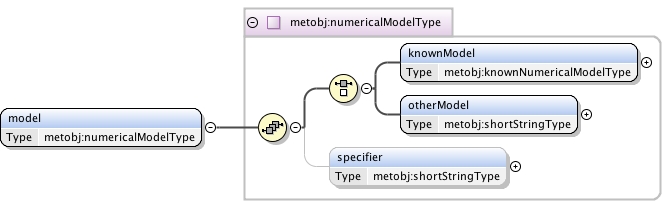

Diagram
Diagram docindex364.tmp#id198 docindex364.tmp#id200 docindex364.tmp#id201 docindex364.tmp#id197
Type metobj:numericalModelType
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model (metobj:knownModel | metobj:otherModel) , metobj:specifier{0,1}
Children metobj:knownModel, metobj:otherModel, metobj:specifier
Source
<xs:element name="model" type="metobj:numericalModelType" minOccurs="1" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Element metobj:NumericalModelRunType/metobj:originTime
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram
Type xs:dateTime
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Source
<xs:element name="originTime" type="xs:dateTime" minOccurs="1" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Element metobj:NumericalModelRunType/metobj:successful
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram
Type xs:boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="successful" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Element metobj:NumericalModelRunType/metobj:analysisTime
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram
Type xs:dateTime
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="analysisTime" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Element metobj:NumericalModelRunType/metobj:validTime
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

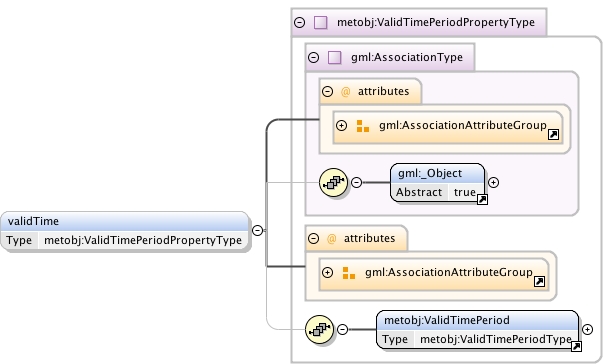

Diagram
Diagram docindex0.tmp#id37 docindex133.tmp#id124 docindex134.tmp#id123 docindex0.tmp#id37 docindex258.tmp#id152 docindex259.tmp#id122
Type metobj:ValidTimePeriodPropertyType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model metobj:ValidTimePeriod
Children metobj:ValidTimePeriod
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
        of traversal from the starting resource to the ending resource;
        it's value should be treated as follows:
        onLoad - traverse to the ending resource immediately on loading
                 the starting resource
        onRequest - traverse from the starting resource to the ending
                    resource only on a post-loading event triggered for
                    this purpose
        other - behavior is unconstrained; examine other markup in link
                for hints
        none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
        of the ending resource on traversal from the starting resource; it's
        value should be treated as follows:
        new - load ending resource in a new window, frame, pane, or other
              presentation context
        replace - load the resource in the same window, frame, pane, or
                  other presentation context
        embed - load ending resource in place of the presentation of the
                starting resource
        other - behavior is unconstrained; examine other markup in the
                link for hints
        none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source
<xs:element name="validTime" type="metobj:ValidTimePeriodPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Element metobj:NumericalModelRunType/metobj:availableSince
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram
Type xs:dateTime
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="availableSince" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Element metobj:NumericalModelRunType/metobj:availableUntil
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram
Type xs:dateTime
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="availableUntil" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Complex Type metobj:NumericalModelRunType
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Annotations
<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p/>
</html:div>

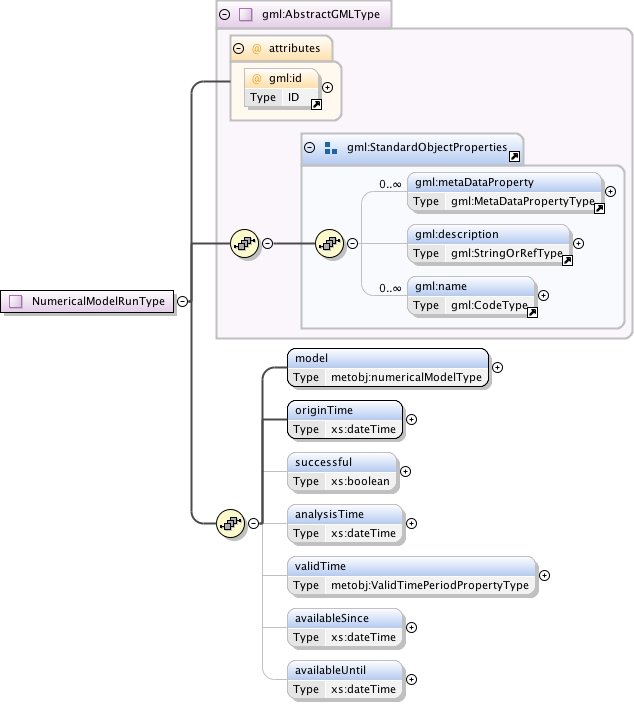

Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex292.tmp#id196 docindex292.tmp#id202 docindex292.tmp#id203 docindex292.tmp#id204 docindex292.tmp#id205 docindex292.tmp#id206 docindex292.tmp#id207
Type extension of gml:AbstractGMLType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , metobj:model , metobj:originTime , metobj:successful{0,1} , metobj:analysisTime{0,1} , metobj:validTime{0,1} , metobj:availableSince{0,1} , metobj:availableUntil{0,1}
Children gml:description, gml:metaDataProperty, gml:name, metobj:analysisTime, metobj:availableSince, metobj:availableUntil, metobj:model, metobj:originTime, metobj:successful, metobj:validTime
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source
<xs:complexType name="NumericalModelRunType">
  <xs:annotation>
    <xs:documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p/>
      </html:div>
    </xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="gml:AbstractGMLType">
      <xs:sequence>
        <xs:element name="model" type="metobj:numericalModelType" minOccurs="1" maxOccurs="1"/>
        <xs:element name="originTime" type="xs:dateTime" minOccurs="1" maxOccurs="1"/>
        <xs:element name="successful" type="xs:boolean" minOccurs="0" maxOccurs="1"/>
        <xs:element name="analysisTime" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
        <xs:element name="validTime" type="metobj:ValidTimePeriodPropertyType" minOccurs="0" maxOccurs="1"/>
        <xs:element name="availableSince" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
        <xs:element name="availableUntil" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
