Complex Type gml:TopoComplexType
Namespace http://www.opengis.net/gml
Annotations

This type represents a TP_Complex capable of holding topological primitives.

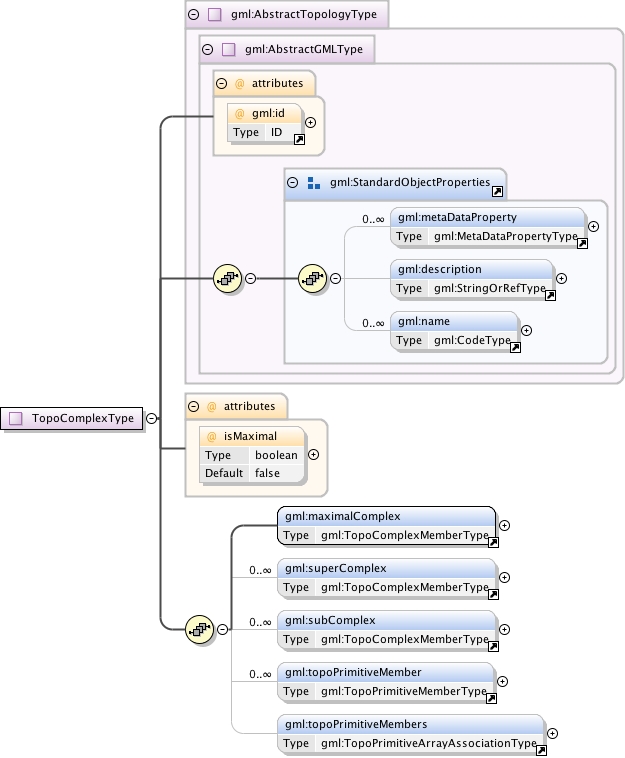

Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex55.tmp#id302 docindex482.tmp#id361 docindex483.tmp#id353 docindex484.tmp#id355 docindex485.tmp#id356 docindex486.tmp#id357 docindex487.tmp#id359
Type extension of gml:AbstractTopologyType
Type hierarchy
Used by
Element gml:TopoComplex
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:maximalComplex , gml:superComplex* , gml:subComplex* , gml:topoPrimitiveMember* , gml:topoPrimitiveMembers{0,1}
Children gml:description, gml:maximalComplex, gml:metaDataProperty, gml:name, gml:subComplex, gml:superComplex, gml:topoPrimitiveMember, gml:topoPrimitiveMembers
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
isMaximal boolean false optional
Source

<complexType name="TopoComplexType">
  <annotation>
    <documentation>This type represents a TP_Complex capable of holding topological primitives.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractTopologyType">
      <sequence>
        <element ref="gml:maximalComplex"/>
        <element ref="gml:superComplex" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:subComplex" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:topoPrimitiveMember" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:topoPrimitiveMembers" minOccurs="0"/>
      </sequence>
      <attribute name="isMaximal" type="boolean" default="false"/>
    </extension>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.1.1/base/topology.xsd
Attribute gml:TopoComplexType/@isMaximal
Namespace No namespace
Type boolean
Properties
default: false
Used by
Complex Type gml:TopoComplexType
Source

<attribute name="isMaximal" type="boolean" default="false"/>
Schema location http://schemas.opengis.net/gml/3.1.1/base/topology.xsd
