Element metobj:RadarImageReferenceType/metobj:instrument
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram docindex207.tmp#id185
Type metobj:shortStringType
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Facets
minLength 0
maxLength 128
Source

<xs:element name="instrument" type="metobj:shortStringType" minOccurs="1" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Element metobj:RadarImageReferenceType/metobj:metaData
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Diagram
Diagram
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model ANY element from ANY namespace
Source

<xs:element name="metaData" minOccurs="0" maxOccurs="1">
  <xs:complexType>
    <xs:sequence>
      <xs:any minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Element metobj:RadarImageReferenceType/metobj:data
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26

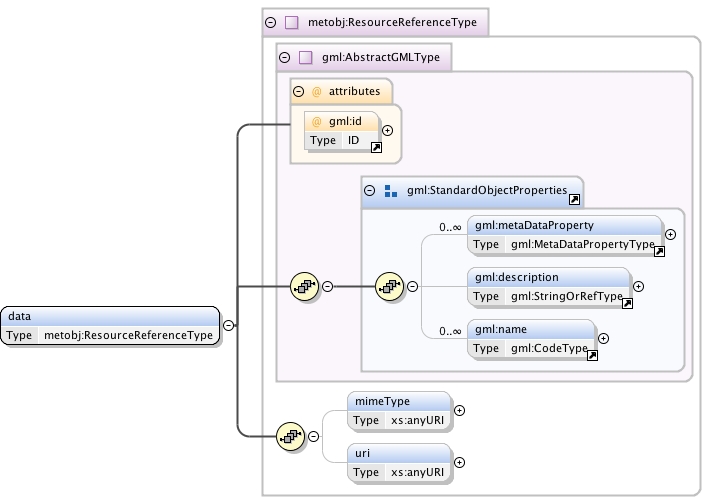

Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex174.tmp#id223 docindex174.tmp#id224 docindex174.tmp#id222
Type metobj:ResourceReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , metobj:mimeType{0,1} , metobj:uri{0,1}
Children gml:description, gml:metaDataProperty, gml:name, metobj:mimeType, metobj:uri
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<xs:element name="data" type="metobj:ResourceReferenceType" minOccurs="1" maxOccurs="unbounded"/>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
Complex Type metobj:RadarImageReferenceType
Namespace http://xml.fmi.fi/namespace/meteorology/conceptual-model/meteorological-objects/2009/03/26
Annotations

<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p/>
</html:div>

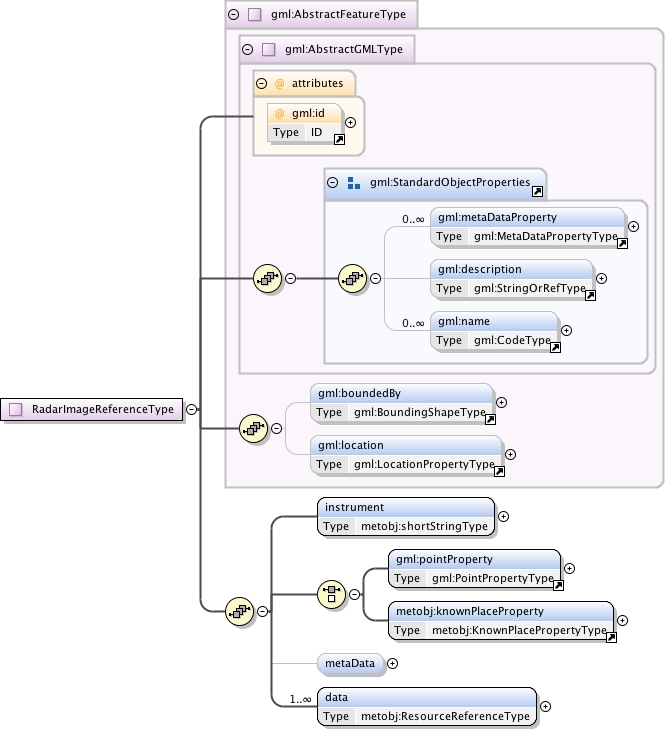

Diagram
Diagram docindex6.tmp#id53 docindex7.tmp#id34 docindex8.tmp#id48 docindex9.tmp#id50 docindex10.tmp#id33 docindex11.tmp#id32 docindex12.tmp#id54 docindex13.tmp#id84 docindex14.tmp#id31 docindex562.tmp#id244 docindex37.tmp#id245 docindex139.tmp#id251 docindex562.tmp#id259 docindex562.tmp#id260
Type extension of gml:AbstractFeatureType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , metobj:instrument , (gml:pointProperty | metobj:knownPlaceProperty) , metobj:metaData{0,1} , metobj:data+
Children gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, metobj:data, metobj:instrument, metobj:knownPlaceProperty, metobj:metaData
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object.  It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.  An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods.  This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<xs:complexType name="RadarImageReferenceType">
  <xs:annotation>
    <xs:documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p/>
      </html:div>
    </xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="gml:AbstractFeatureType">
      <xs:sequence>
        <xs:element name="instrument" type="metobj:shortStringType" minOccurs="1" maxOccurs="1"/>
        <xs:choice>
          <xs:element ref="gml:pointProperty" minOccurs="1" maxOccurs="1"/>
          <xs:element ref="metobj:knownPlaceProperty" minOccurs="1" maxOccurs="1"/>
        </xs:choice>
        <xs:element name="metaData" minOccurs="0" maxOccurs="1">
          <xs:complexType>
            <xs:sequence>
              <xs:any minOccurs="0" maxOccurs="unbounded"/>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
        <xs:element name="data" type="metobj:ResourceReferenceType" minOccurs="1" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location http://xml.fmi.fi/schema/meteorology/conceptual-model/meteorological-objects/2009/03/26/metobjects-common.xsd
