Element womlcore:RadarImageReferenceType / womlcore:instrument
Namespace http://xml.fmi.fi/namespace/woml/2010/05/28/core
Diagram
Diagram docindex10.tmp#id163
Type womlcore:shortStringType
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Facets
minLength 0
maxLength 128
Source
<element name="instrument" type="womlcore:shortStringType" minOccurs="1" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/woml/2010/05/28/core/woml-common.xsd
Element womlcore:RadarImageReferenceType / womlcore:metaData
Namespace http://xml.fmi.fi/namespace/woml/2010/05/28/core
Diagram
Diagram
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model ANY element from ANY namespace
Source
<element name="metaData" minOccurs="0" maxOccurs="1">
  <complexType>
    <sequence>
      <any minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
  </complexType>
</element>
Schema location http://xml.fmi.fi/schema/woml/2010/05/28/core/woml-common.xsd

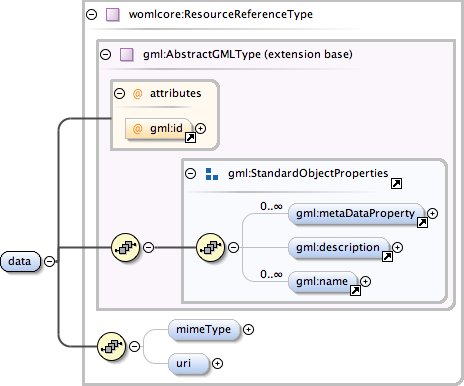

Element womlcore:RadarImageReferenceType / womlcore:data
Namespace http://xml.fmi.fi/namespace/woml/2010/05/28/core
Diagram
Diagram docindex33.tmp#id56 docindex34.tmp#id38 docindex35.tmp#id51 docindex36.tmp#id53 docindex37.tmp#id37 docindex38.tmp#id36 docindex240.tmp#id240 docindex240.tmp#id241 docindex240.tmp#id239
Type womlcore:ResourceReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , womlcore:mimeType{0,1} , womlcore:uri{0,1}
Children gml:description, gml:metaDataProperty, gml:name, womlcore:mimeType, womlcore:uri
Instance
<womlcore:data gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</womlcore:data>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source
<element name="data" type="womlcore:ResourceReferenceType" minOccurs="1" maxOccurs="unbounded"/>
Schema location http://xml.fmi.fi/schema/woml/2010/05/28/core/woml-common.xsd

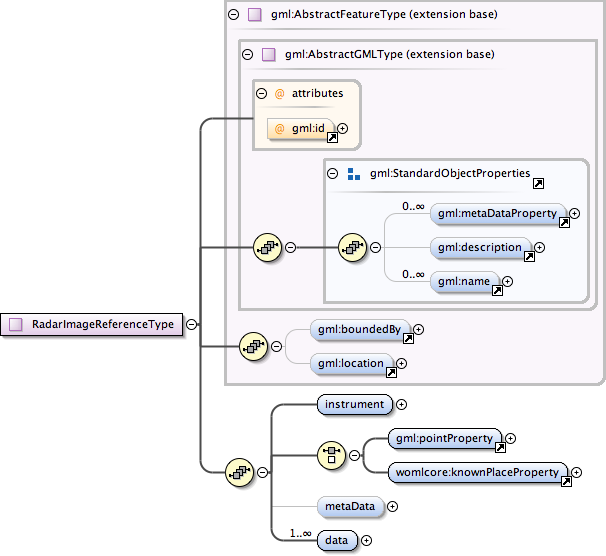

Complex Type womlcore:RadarImageReferenceType
Namespace http://xml.fmi.fi/namespace/woml/2010/05/28/core
Annotations

Diagram
Diagram docindex33.tmp#id56 docindex34.tmp#id38 docindex35.tmp#id51 docindex36.tmp#id53 docindex37.tmp#id37 docindex38.tmp#id36 docindex108.tmp#id57 docindex109.tmp#id87 docindex110.tmp#id35 docindex212.tmp#id821 docindex70.tmp#id183 docindex128.tmp#id211 docindex212.tmp#id822 docindex212.tmp#id823
Type extension of gml:AbstractFeatureType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , womlcore:instrument , (gml:pointProperty | womlcore:knownPlaceProperty) , womlcore:metaData{0,1} , womlcore:data+
Children gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, womlcore:data, womlcore:instrument, womlcore:knownPlaceProperty, womlcore:metaData
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source
<complexType name="RadarImageReferenceType">
  <annotation>
    <documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p/>
      </html:div>
    </documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractFeatureType">
      <sequence>
        <element name="instrument" type="womlcore:shortStringType" minOccurs="1" maxOccurs="1"/>
        <choice>
          <element ref="gml:pointProperty" minOccurs="1" maxOccurs="1"/>
          <element ref="womlcore:knownPlaceProperty" minOccurs="1" maxOccurs="1"/>
        </choice>
        <element name="metaData" minOccurs="0" maxOccurs="1">
          <complexType>
            <sequence>
              <any minOccurs="0" maxOccurs="unbounded"/>
            </sequence>
          </complexType>
        </element>
        <element name="data" type="womlcore:ResourceReferenceType" minOccurs="1" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://xml.fmi.fi/schema/woml/2010/05/28/core/woml-common.xsd
