Complex Type gml:CoordinateSystemAxisType
Namespace http://www.opengis.net/gml/3.2

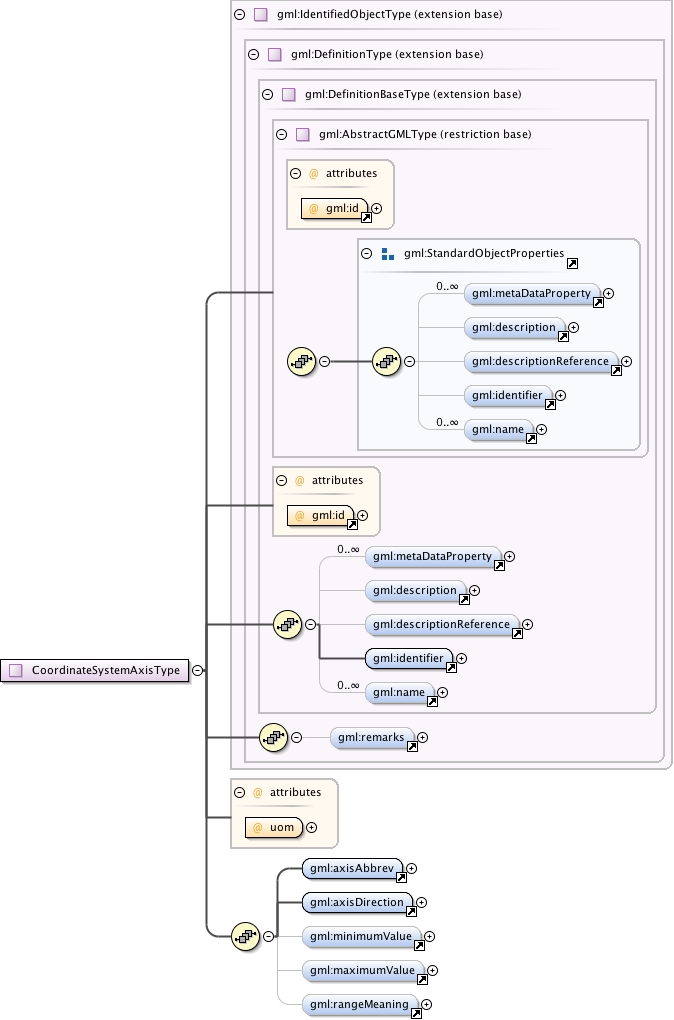

Diagram
Diagram index18.tmp#id77 index19.tmp#id71 index20.tmp#id99 index21.tmp#id101 index22.tmp#id105 index23.tmp#id110 index24.tmp#id70 index25.tmp#id69 index18.tmp#id77 index19.tmp#id71 index20.tmp#id99 index21.tmp#id101 index22.tmp#id105 index23.tmp#id110 index116.tmp#id643 index117.tmp#id644 index118.tmp#id642 index119.tmp#id986 index818.tmp#id1203 index819.tmp#id1198 index820.tmp#id1199 index821.tmp#id1200 index822.tmp#id1201 index823.tmp#id1202
Type extension of gml:IdentifiedObjectType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier , gml:name* , gml:remarks{0,1} , gml:axisAbbrev , gml:axisDirection , gml:minimumValue{0,1} , gml:maximumValue{0,1} , gml:rangeMeaning{0,1}
Children gml:axisAbbrev, gml:axisDirection, gml:description, gml:descriptionReference, gml:identifier, gml:maximumValue, gml:metaDataProperty, gml:minimumValue, gml:name, gml:rangeMeaning, gml:remarks
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
uom gml:UomIdentifier required
The uom attribute provides an identifier of the unit of measure used for this coordinate system axis. The value of this coordinate in a coordinate tuple shall be recorded using this unit of measure, whenever those coordinates use a coordinate reference system that uses a coordinate system that uses this axis.
Source

<complexType name="CoordinateSystemAxisType">
  <complexContent>
    <extension base="gml:IdentifiedObjectType">
      <sequence>
        <element ref="gml:axisAbbrev"/>
        <element ref="gml:axisDirection"/>
        <element ref="gml:minimumValue" minOccurs="0"/>
        <element ref="gml:maximumValue" minOccurs="0"/>
        <element ref="gml:rangeMeaning" minOccurs="0"/>
      </sequence>
      <attribute name="uom" type="gml:UomIdentifier" use="required">
        <annotation>
          <documentation>The uom attribute provides an identifier of the unit of measure used for this coordinate system axis. The value of this coordinate in a coordinate tuple shall be recorded using this unit of measure, whenever those coordinates use a coordinate reference system that uses a coordinate system that uses this axis.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.2.1/coordinateSystems.xsd
Attribute gml:CoordinateSystemAxisType / @uom
Namespace No namespace
Annotations

The uom attribute provides an identifier of the unit of measure used for this coordinate system axis. The value of this coordinate in a coordinate tuple shall be recorded using this unit of measure, whenever those coordinates use a coordinate reference system that uses a coordinate system that uses this axis.
Type gml:UomIdentifier
Properties
use: required
Used by
Source

<attribute name="uom" type="gml:UomIdentifier" use="required">
  <annotation>
    <documentation>The uom attribute provides an identifier of the unit of measure used for this coordinate system axis. The value of this coordinate in a coordinate tuple shall be recorded using this unit of measure, whenever those coordinates use a coordinate reference system that uses a coordinate system that uses this axis.</documentation>
  </annotation>
</attribute>
Schema location http://schemas.opengis.net/gml/3.2.1/coordinateSystems.xsd
