Schema documentation for component womlswo:PointMeteorologicalSymbolType

Showing:

Annotations

Attributes

Diagrams

Source

Used by

Complex Type womlswo:PointMeteorologicalSymbolType

Namespace

http://xml.fmi.fi/namespace/woml/swo/2010/05/28

Annotations

A single meteorological symbol fixed at a geospatial point or point-like location.

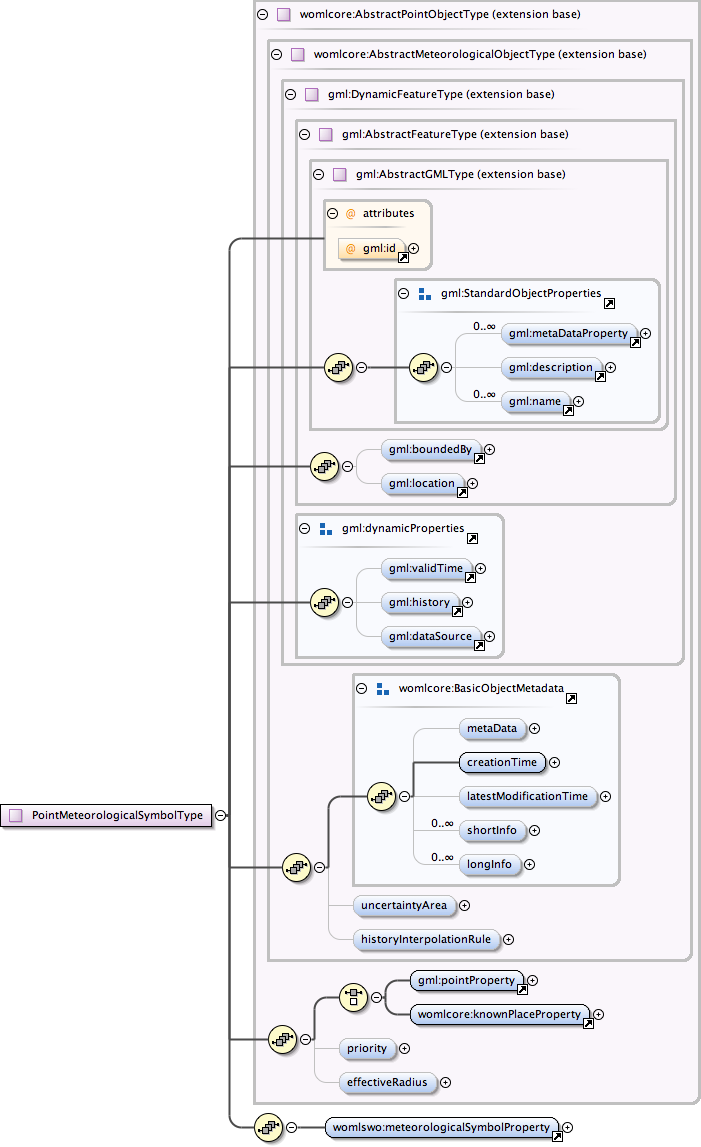

Diagram

Type

extension of womlcore:AbstractPointObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - gml:DynamicFeatureType
    - womlcore:AbstractMeteorologicalObjectType
      - womlcore:AbstractPointObjectType

        womlswo:PointMeteorologicalSymbolType

Used by

Element	womlswo:PointMeteorologicalSymbol
Complex Type	womlswo:DirectionalMeteorologicalSymbolType

Model

gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime{0,1} , gml:history{0,1} , gml:dataSource{0,1} , womlcore:metaData{0,1} , womlcore:creationTime , womlcore:latestModificationTime{0,1} , womlcore:shortInfo* , womlcore:longInfo* , womlcore:uncertaintyArea{0,1} , womlcore:historyInterpolationRule{0,1} , (gml:pointProperty | womlcore:knownPlaceProperty) , womlcore:priority{0,1} , womlcore:effectiveRadius{0,1} , womlswo:meteorologicalSymbolProperty

Children

gml:boundedBy, gml:dataSource, gml:description, gml:history, gml:location, gml:metaDataProperty, gml:name, gml:pointProperty, gml:validTime, womlcore:creationTime, womlcore:effectiveRadius, womlcore:historyInterpolationRule, womlcore:knownPlaceProperty, womlcore:latestModificationTime, womlcore:longInfo, womlcore:metaData, womlcore:priority, womlcore:shortInfo, womlcore:uncertaintyArea, womlswo:meteorologicalSymbolProperty

Attributes

QName	Type	Fixed	Default	Use	Annotation
gml:id	ID			optional	Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

Source

<complexType name="PointMeteorologicalSymbolType">
  <annotation>
    <documentation>A single meteorological symbol fixed at a geospatial point or point-like location.</documentation>
  </annotation>
  <complexContent>
    <extension base="womlcore:AbstractPointObjectType">
      <sequence>
        <element ref="womlswo:meteorologicalSymbolProperty" minOccurs="1" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

Schema location

http://xml.fmi.fi/schema/woml/swo/2010/05/28/woml-symbol.xsd
