Element womlcore:TimeAggregationType / womlcore:function
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Diagram
Diagram
Type restriction of string
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Facets
enumeration avg
enumeration slidingAvg
enumeration mean
enumeration min
enumeration max
enumeration count
enumeration sum
Source

<element name="function" minOccurs="1" maxOccurs="1">
  <simpleType>
    <restriction base="string">
      <enumeration value="avg"/>
      <enumeration value="slidingAvg"/>
      <enumeration value="mean"/>
      <enumeration value="min"/>
      <enumeration value="max"/>
      <enumeration value="count"/>
      <enumeration value="sum"/>
    </restriction>
  </simpleType>
</element>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd

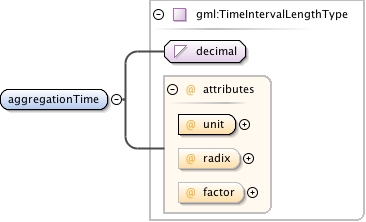

Element womlcore:TimeAggregationType / womlcore:aggregationTime
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Diagram
Diagram index358.tmp#id302 index358.tmp#id304 index358.tmp#id305 index358.tmp#id301
Type gml:TimeIntervalLengthType
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
factor integer optional
radix positiveInteger optional
unit gml:TimeUnitType required
Source

<element name="aggregationTime" type="gml:TimeIntervalLengthType" minOccurs="1" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd

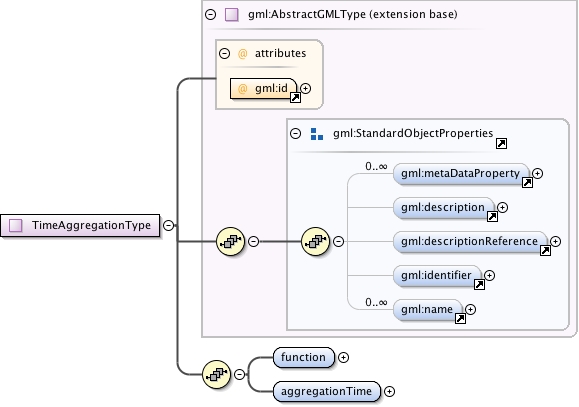

Complex Type womlcore:TimeAggregationType
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index1090.tmp#id2298 index1090.tmp#id2299
Type extension of gml:AbstractGMLType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , womlcore:function , womlcore:aggregationTime
Children gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, womlcore:aggregationTime, womlcore:function
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="TimeAggregationType">
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <element name="function" minOccurs="1" maxOccurs="1">
          <simpleType>
            <restriction base="string">
              <enumeration value="avg"/>
              <enumeration value="slidingAvg"/>
              <enumeration value="mean"/>
              <enumeration value="min"/>
              <enumeration value="max"/>
              <enumeration value="count"/>
              <enumeration value="sum"/>
            </restriction>
          </simpleType>
        </element>
        <element name="aggregationTime" type="gml:TimeIntervalLengthType" minOccurs="1" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd
