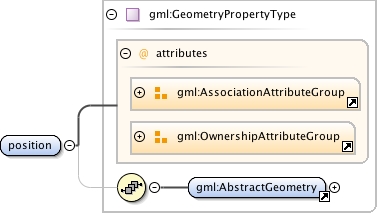

Element gml:MovingObjectStatusType / gml:position
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index1.tmp#id86 index0.tmp#id104 index2.tmp#id139 index1105.tmp#id395
Type gml:GeometryPropertyType
Properties
content: complex
Model gml:AbstractGeometry
Children gml:AbstractGeometry
Instance

<gml:position xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <gml:AbstractGeometry axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:AbstractGeometry>
</gml:position>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="position" type="gml:GeometryPropertyType"/>
Schema location http://schemas.opengis.net/gml/3.2.1/deprecatedTypes.xsd
Element gml:MovingObjectStatusType / gml:speed
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index102.tmp#id317 index102.tmp#id316
Type gml:MeasureType
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
uom gml:UomIdentifier required
Source

<element name="speed" type="gml:MeasureType" minOccurs="0"/>
Schema location http://schemas.opengis.net/gml/3.2.1/deprecatedTypes.xsd

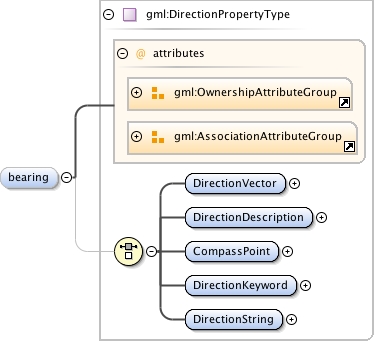

Element gml:MovingObjectStatusType / gml:bearing
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index0.tmp#id104 index1.tmp#id86 index775.tmp#id771 index775.tmp#id775 index775.tmp#id782 index775.tmp#id783 index775.tmp#id784 index775.tmp#id770
Type gml:DirectionPropertyType
Properties
content: complex
minOccurs: 0
Model gml:DirectionVector | gml:DirectionDescription | gml:CompassPoint | gml:DirectionKeyword | gml:DirectionString
Children gml:CompassPoint, gml:DirectionDescription, gml:DirectionKeyword, gml:DirectionString, gml:DirectionVector
Instance

<gml:bearing xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <gml:DirectionVector>{1,1}</gml:DirectionVector>
  <gml:DirectionDescription>{1,1}</gml:DirectionDescription>
  <gml:CompassPoint>{1,1}</gml:CompassPoint>
  <gml:DirectionKeyword codeSpace="">{1,1}</gml:DirectionKeyword>
  <gml:DirectionString xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:DirectionString>
</gml:bearing>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="bearing" type="gml:DirectionPropertyType" minOccurs="0"/>
Schema location http://schemas.opengis.net/gml/3.2.1/deprecatedTypes.xsd
Element gml:MovingObjectStatusType / gml:acceleration
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index102.tmp#id317 index102.tmp#id316
Type gml:MeasureType
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
uom gml:UomIdentifier required
Source

<element name="acceleration" type="gml:MeasureType" minOccurs="0"/>
Schema location http://schemas.opengis.net/gml/3.2.1/deprecatedTypes.xsd
Element gml:MovingObjectStatusType / gml:elevation
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index102.tmp#id317 index102.tmp#id316
Type gml:MeasureType
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
uom gml:UomIdentifier required
Source

<element name="elevation" type="gml:MeasureType" minOccurs="0"/>
Schema location http://schemas.opengis.net/gml/3.2.1/deprecatedTypes.xsd

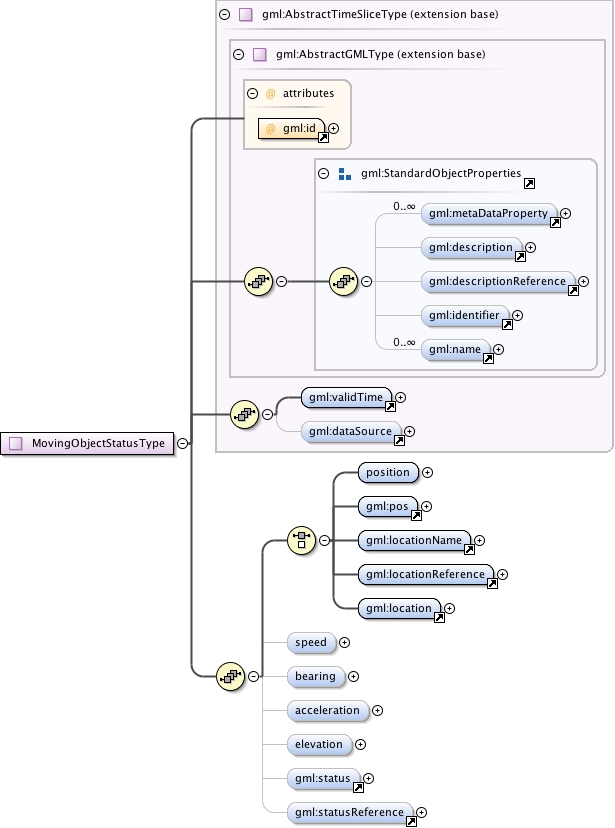

Complex Type gml:MovingObjectStatusType
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index45.tmp#id176 index58.tmp#id198 index105.tmp#id197 index1151.tmp#id2054 index176.tmp#id128 index1152.tmp#id386 index1153.tmp#id387 index43.tmp#id136 index1151.tmp#id2055 index1151.tmp#id2056 index1151.tmp#id2057 index1151.tmp#id2058 index1154.tmp#id2059 index1155.tmp#id2060
Type extension of gml:AbstractTimeSliceType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:validTime , gml:dataSource{0,1} , (gml:position | gml:pos | gml:locationName | gml:locationReference | gml:location) , gml:speed{0,1} , gml:bearing{0,1} , gml:acceleration{0,1} , gml:elevation{0,1} , gml:status{0,1} , gml:statusReference{0,1}
Children gml:acceleration, gml:bearing, gml:dataSource, gml:description, gml:descriptionReference, gml:elevation, gml:identifier, gml:location, gml:locationName, gml:locationReference, gml:metaDataProperty, gml:name, gml:pos, gml:position, gml:speed, gml:status, gml:statusReference, gml:validTime
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="MovingObjectStatusType">
  <annotation>
    <appinfo>deprecated</appinfo>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractTimeSliceType">
      <sequence>
        <choice>
          <element name="position" type="gml:GeometryPropertyType"/>
          <element ref="gml:pos"/>
          <element ref="gml:locationName"/>
          <element ref="gml:locationReference"/>
          <element ref="gml:location"/>
        </choice>
        <element name="speed" type="gml:MeasureType" minOccurs="0"/>
        <element name="bearing" type="gml:DirectionPropertyType" minOccurs="0"/>
        <element name="acceleration" type="gml:MeasureType" minOccurs="0"/>
        <element name="elevation" type="gml:MeasureType" minOccurs="0"/>
        <element ref="gml:status" minOccurs="0"/>
        <element ref="gml:statusReference" minOccurs="0"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.2.1/deprecatedTypes.xsd
