Schema documentation for component womlcore:NumericalWeatherModelType

Showing:

Attributes

Diagrams

Facets

Properties

Source

Used by

Element womlcore:NumericalWeatherModelType / womlcore:modelIdentifier

Namespace

http://xml.fmi.fi/namespace/woml/core/2011/03/15

Diagram

Type

anyURI

Properties

content:	simple
minOccurs:	1
maxOccurs:	1

Source

<element name="modelIdentifier" type="anyURI" minOccurs="1" maxOccurs="1"/>

Schema location

http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd

Element womlcore:NumericalWeatherModelType / womlcore:specifier

Namespace

http://xml.fmi.fi/namespace/woml/core/2011/03/15

Diagram

Type

womlcore:shortStringType

Properties

content:	simple
minOccurs:	0
maxOccurs:	1

Facets

minLength	0
maxLength	128

Source

<element name="specifier" type="womlcore:shortStringType" minOccurs="0" maxOccurs="1"/>

Schema location

http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd

Complex Type womlcore:NumericalWeatherModelType

Namespace

http://xml.fmi.fi/namespace/woml/core/2011/03/15

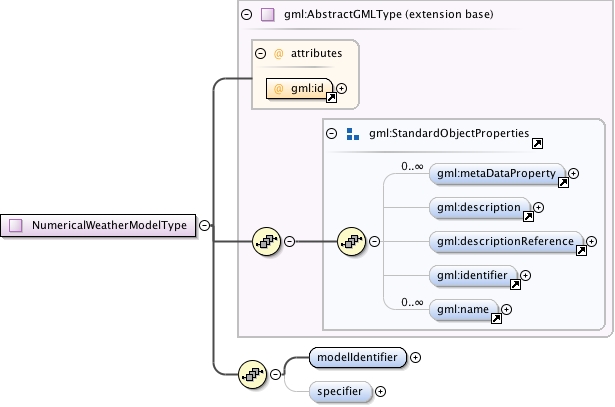

Diagram

Type

extension of gml:AbstractGMLType

Type hierarchy

gml:AbstractGMLType
- womlcore:NumericalWeatherModelType

Used by

Element

womlcore:NumericalWeatherModel

Model

gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , womlcore:modelIdentifier , womlcore:specifier{0,1}

Children

gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, womlcore:modelIdentifier, womlcore:specifier

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

required

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

Source

<complexType name="NumericalWeatherModelType">
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <element name="modelIdentifier" type="anyURI" minOccurs="1" maxOccurs="1"/>
        <element name="specifier" type="womlcore:shortStringType" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

Schema location

http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd
