Element gml:AbstractCurve
Namespace http://www.opengis.net/gml/3.2
Annotations

The AbstractCurve element is the abstract head of the substitution group for all (continuous) curve elements.

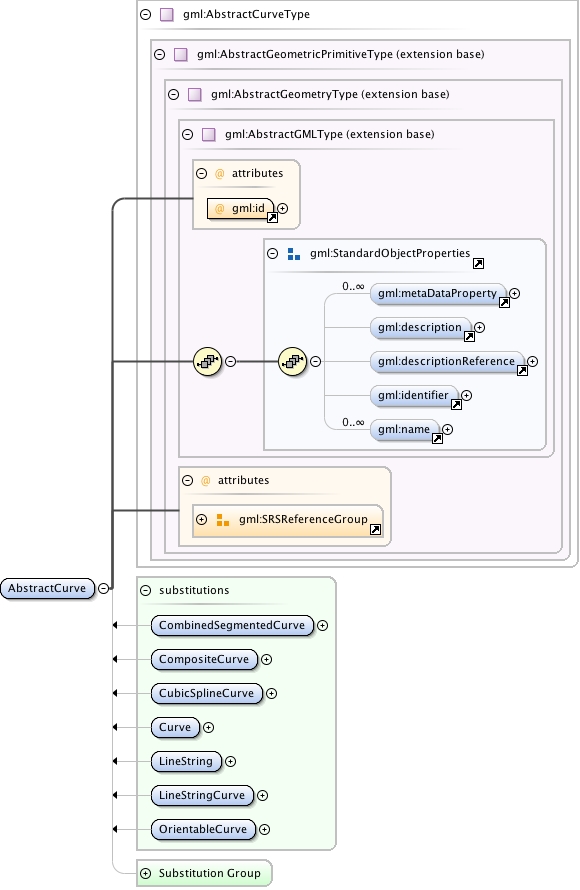

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index90.tmp#id120 index91.tmp#id172 index92.tmp#id238 index175.tmp#id408 index1232.tmp#id162 index1273.tmp#id157 index497.tmp#id169 index1282.tmp#id143 index1283.tmp#id141 index1222.tmp#id164 index1284.tmp#id144
Type gml:AbstractCurveType
Type hierarchy
Properties
content: complex
abstract: true
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name*
Children gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name
Instance

<gml:AbstractCurve axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:AbstractCurve>
Attributes
QName Type Fixed Default Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="AbstractCurve" type="gml:AbstractCurveType" abstract="true" substitutionGroup="gml:AbstractGeometricPrimitive">
  <annotation>
    <documentation>The AbstractCurve element is the abstract head of the substitution group for all (continuous) curve elements.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryBasic0d1d.xsd
