Complex Type gml:AbstractCurveType
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:AbstractCurveType is an abstraction of a curve to support the different levels of complexity. The curve may always be viewed as a geometric primitive, i.e. is continuous.

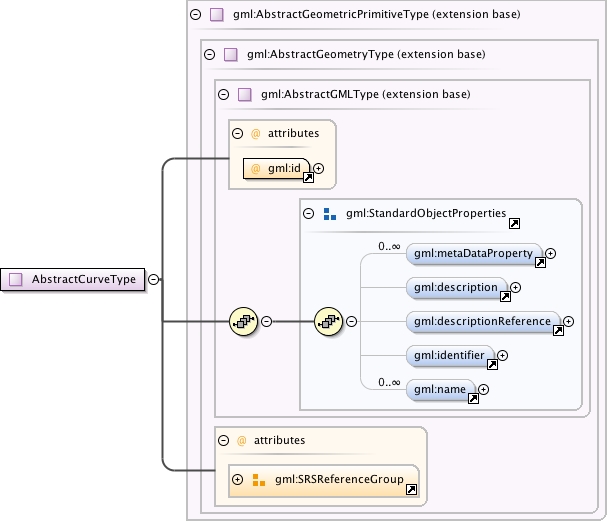

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index90.tmp#id120 index91.tmp#id172 index92.tmp#id238
Type extension of gml:AbstractGeometricPrimitiveType
Type hierarchy
Properties
abstract: true
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name*
Children gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name
Attributes
QName Type Fixed Default Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="AbstractCurveType" abstract="true">
  <annotation>
    <documentation>gml:AbstractCurveType is an abstraction of a curve to support the different levels of complexity. The curve may always be viewed as a geometric primitive, i.e. is continuous.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGeometricPrimitiveType"/>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.2.1/geometryBasic0d1d.xsd
