Element womlcore:NumericalModelRunForecastReferenceType / womlcore:model
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15

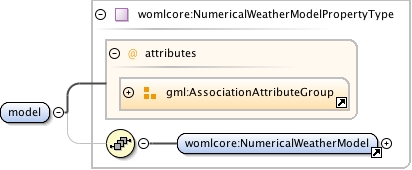

Diagram
Diagram index1.tmp#id86 index477.tmp#id697 index533.tmp#id2285
Type womlcore:NumericalWeatherModelPropertyType
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model womlcore:NumericalWeatherModel
Children womlcore:NumericalWeatherModel
Instance
<womlcore:model xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <womlcore:NumericalWeatherModel gml:id="">{1,1}</womlcore:NumericalWeatherModel>
</womlcore:model>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source
<element name="model" type="womlcore:NumericalWeatherModelPropertyType" minOccurs="1" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd
Complex Type womlcore:NumericalModelRunForecastReferenceType
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Annotations

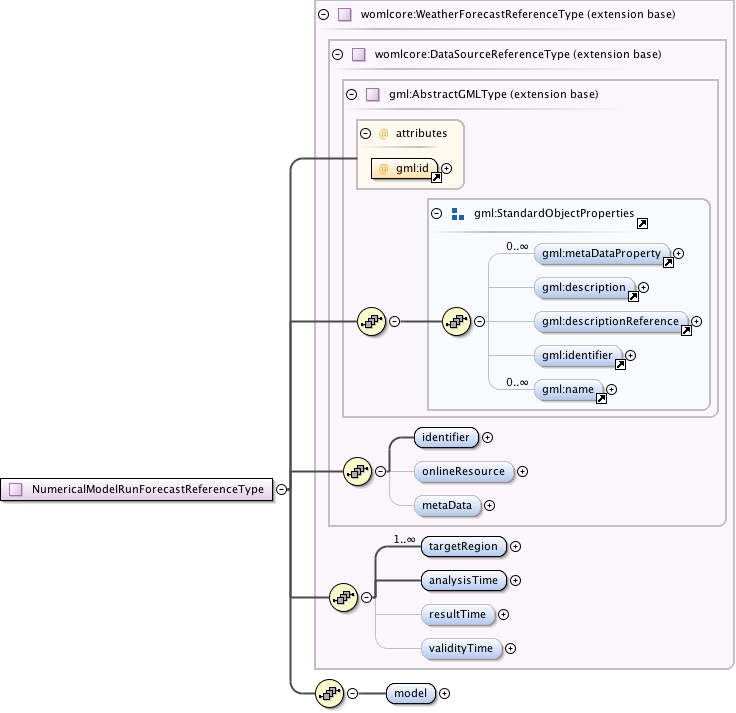

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index123.tmp#id2182 index123.tmp#id2183 index123.tmp#id2188 index123.tmp#id2181 index201.tmp#id2277 index201.tmp#id2278 index201.tmp#id2279 index201.tmp#id2280 index201.tmp#id2276 index532.tmp#id2284
Type extension of womlcore:WeatherForecastReferenceType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , womlcore:identifier , womlcore:onlineResource{0,1} , womlcore:metaData{0,1} , womlcore:targetRegion+ , womlcore:analysisTime , womlcore:resultTime{0,1} , womlcore:validityTime{0,1} , womlcore:model
Children gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, womlcore:analysisTime, womlcore:identifier, womlcore:metaData, womlcore:model, womlcore:onlineResource, womlcore:resultTime, womlcore:targetRegion, womlcore:validityTime
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source
<complexType name="NumericalModelRunForecastReferenceType">
  <annotation>
    <documentation>
    </documentation>
  </annotation>
  <complexContent>
    <extension base="womlcore:WeatherForecastReferenceType">
      <sequence>
        <element name="model" type="womlcore:NumericalWeatherModelPropertyType" minOccurs="1" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd
