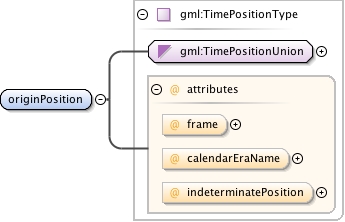

Element gml:TimeCoordinateSystemType / gml:originPosition
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index604.tmp#id378 index605.tmp#id380 index605.tmp#id381 index605.tmp#id382 index605.tmp#id377
Type gml:TimePositionType
Type hierarchy
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="originPosition" type="gml:TimePositionType"/>
Schema location http://schemas.opengis.net/gml/3.2.1/temporalReferenceSystems.xsd

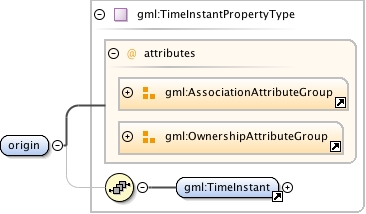

Element gml:TimeCoordinateSystemType / gml:origin
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index1.tmp#id86 index0.tmp#id104 index548.tmp#id179 index549.tmp#id759
Type gml:TimeInstantPropertyType
Properties
content: complex
Model gml:TimeInstant
Children gml:TimeInstant
Instance

<gml:origin xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <gml:TimeInstant frame="#ISO-8601" gml:id="">{1,1}</gml:TimeInstant>
</gml:origin>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="origin" type="gml:TimeInstantPropertyType"/>
Schema location http://schemas.opengis.net/gml/3.2.1/temporalReferenceSystems.xsd

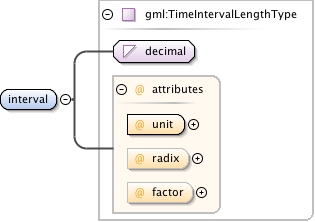

Element gml:TimeCoordinateSystemType / gml:interval
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index358.tmp#id302 index358.tmp#id304 index358.tmp#id305 index358.tmp#id301
Type gml:TimeIntervalLengthType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
factor integer optional
radix positiveInteger optional
unit gml:TimeUnitType required
Source

<element name="interval" type="gml:TimeIntervalLengthType"/>
Schema location http://schemas.opengis.net/gml/3.2.1/temporalReferenceSystems.xsd

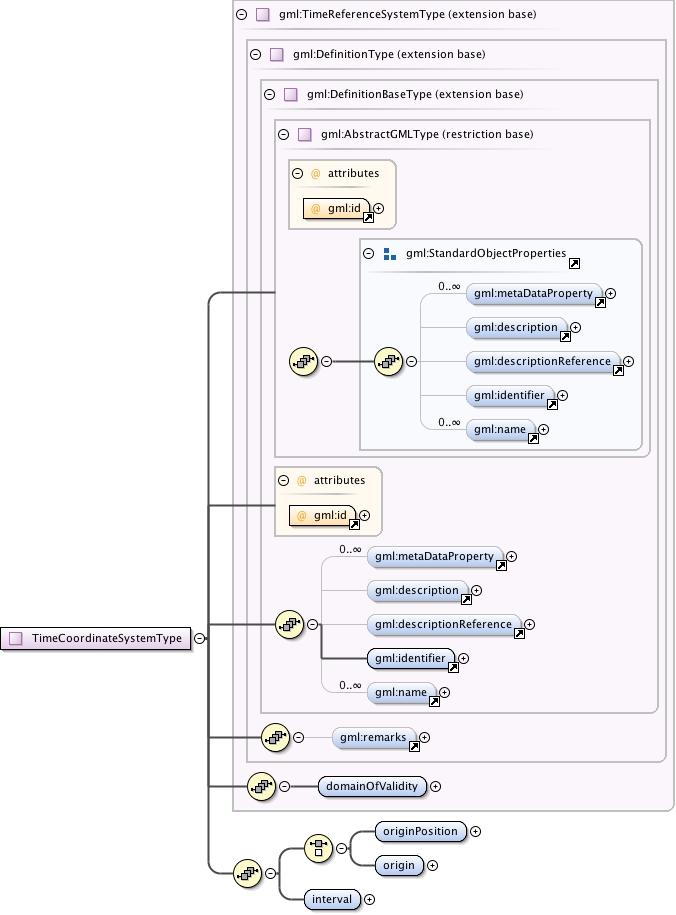

Complex Type gml:TimeCoordinateSystemType
Namespace http://www.opengis.net/gml/3.2
Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index149.tmp#id581 index150.tmp#id582 index151.tmp#id580 index444.tmp#id1924 index444.tmp#id1923 index552.tmp#id1926 index552.tmp#id1927 index552.tmp#id1928
Type extension of gml:TimeReferenceSystemType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier , gml:name* , gml:remarks{0,1} , gml:domainOfValidity , (gml:originPosition | gml:origin) , gml:interval
Children gml:description, gml:descriptionReference, gml:domainOfValidity, gml:identifier, gml:interval, gml:metaDataProperty, gml:name, gml:origin, gml:originPosition, gml:remarks
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="TimeCoordinateSystemType">
  <complexContent>
    <extension base="gml:TimeReferenceSystemType">
      <sequence>
        <choice>
          <element name="originPosition" type="gml:TimePositionType"/>
          <element name="origin" type="gml:TimeInstantPropertyType"/>
        </choice>
        <element name="interval" type="gml:TimeIntervalLengthType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.2.1/temporalReferenceSystems.xsd
