Element womlcore:GeographicRegionType / womlcore:boundary
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Diagram
Diagram index1141.tmp#id511 index1278.tmp#id558
Type gml:LinearRingPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model gml:LinearRing
Children gml:LinearRing
Instance

<womlcore:boundary>
  <gml:LinearRing>{1,1}</gml:LinearRing>
</womlcore:boundary>
Source

<element name="boundary" type="gml:LinearRingPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd

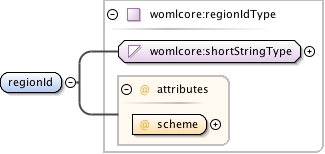

Element womlcore:GeographicRegionType / womlcore:regionId
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Diagram
Diagram index280.tmp#id224 index808.tmp#id2176 index808.tmp#id2175
Type womlcore:regionIdType
Type hierarchy
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
scheme string required
Source

<element name="regionId" type="womlcore:regionIdType" minOccurs="1" maxOccurs="unbounded"/>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd

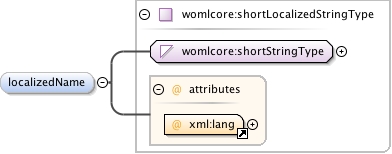

Element womlcore:GeographicRegionType / womlcore:localizedName
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Diagram
Diagram index280.tmp#id224 index32.tmp#id207 index856.tmp#id229
Type womlcore:shortLocalizedStringType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
xml:lang xs:language required
In due course, we should install the relevant ISO 2- and 3-letter
codes as the enumerated possible values . . .
Source

<element name="localizedName" type="womlcore:shortLocalizedStringType" minOccurs="0" maxOccurs="unbounded"/>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd
Complex Type womlcore:GeographicRegionType
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Annotations

<html:div xmlns="http://www.w3.org/1999/xhtml">
  <p/>
</html:div>
Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index42.tmp#id112 index43.tmp#id136 index44.tmp#id76 index624.tmp#id2173 index624.tmp#id2174 index624.tmp#id2177
Type extension of gml:AbstractFeatureType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , womlcore:boundary{0,1} , womlcore:regionId+ , womlcore:localizedName*
Children gml:boundedBy, gml:description, gml:descriptionReference, gml:identifier, gml:location, gml:metaDataProperty, gml:name, womlcore:boundary, womlcore:localizedName, womlcore:regionId
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="GeographicRegionType">
  <annotation>
    <documentation>
      <html:div xmlns="http://www.w3.org/1999/xhtml">
        <p/>
      </html:div>
    </documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractFeatureType">
      <sequence>
        <element name="boundary" type="gml:LinearRingPropertyType" minOccurs="0" maxOccurs="1"/>
        <element name="regionId" type="womlcore:regionIdType" minOccurs="1" maxOccurs="unbounded"/>
        <element name="localizedName" type="womlcore:shortLocalizedStringType" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd
