Element womlcore:AbstractMeteorologicalObjectType / womlcore:uncertaintyArea
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15

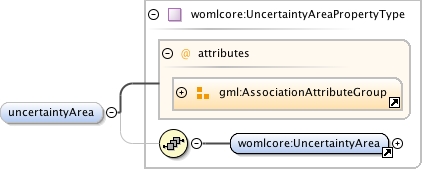

Diagram
Diagram index1.tmp#id86 index255.tmp#id170 index256.tmp#id234
Type womlcore:UncertaintyAreaPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model womlcore:UncertaintyArea
Children womlcore:UncertaintyArea
Instance

<womlcore:uncertaintyArea xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <womlcore:UncertaintyArea axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</womlcore:UncertaintyArea>
</womlcore:uncertaintyArea>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="uncertaintyArea" type="womlcore:UncertaintyAreaPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-core.xsd
Element womlcore:AbstractMeteorologicalObjectType / womlcore:historyInterpolationRule
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15

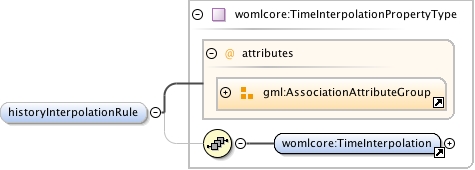

Diagram
Diagram index1.tmp#id86 index181.tmp#id296 index182.tmp#id295
Type womlcore:TimeInterpolationPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model womlcore:TimeInterpolation
Children womlcore:TimeInterpolation
Instance

<womlcore:historyInterpolationRule xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <womlcore:TimeInterpolation gml:id="">{1,1}</womlcore:TimeInterpolation>
</womlcore:historyInterpolationRule>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
nilReason gml:NilReasonType optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="historyInterpolationRule" type="womlcore:TimeInterpolationPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-core.xsd
Complex Type womlcore:AbstractMeteorologicalObjectType
Namespace http://xml.fmi.fi/namespace/woml/core/2011/03/15
Annotations

Abstract parent type for all Meteorological
Objects.

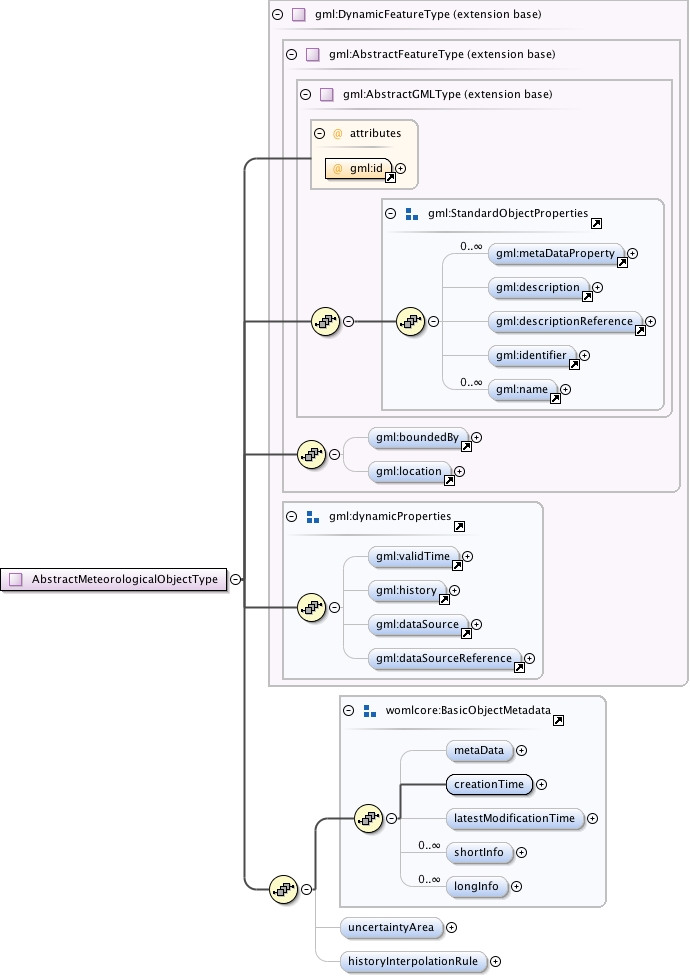

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index42.tmp#id112 index43.tmp#id136 index44.tmp#id76 index45.tmp#id176 index57.tmp#id189 index58.tmp#id198 index59.tmp#id199 index60.tmp#id175 index61.tmp#id75 index62.tmp#id201 index62.tmp#id226 index62.tmp#id227 index62.tmp#id228 index62.tmp#id230 index62.tmp#id200 index63.tmp#id233 index63.tmp#id294
Type extension of gml:DynamicFeatureType
Type hierarchy
Properties
abstract: true
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime{0,1} , gml:history{0,1} , gml:dataSource{0,1} , gml:dataSourceReference{0,1} , womlcore:metaData{0,1} , womlcore:creationTime , womlcore:latestModificationTime{0,1} , womlcore:shortInfo* , womlcore:longInfo* , womlcore:uncertaintyArea{0,1} , womlcore:historyInterpolationRule{0,1}
Children gml:boundedBy, gml:dataSource, gml:dataSourceReference, gml:description, gml:descriptionReference, gml:history, gml:identifier, gml:location, gml:metaDataProperty, gml:name, gml:validTime, womlcore:creationTime, womlcore:historyInterpolationRule, womlcore:latestModificationTime, womlcore:longInfo, womlcore:metaData, womlcore:shortInfo, womlcore:uncertaintyArea
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="AbstractMeteorologicalObjectType" abstract="true">
  <annotation>
    <documentation>Abstract parent type for all Meteorological Objects.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:DynamicFeatureType">
      <sequence>
        <group ref="womlcore:BasicObjectMetadata"/>
        <element name="uncertaintyArea" type="womlcore:UncertaintyAreaPropertyType" minOccurs="0" maxOccurs="1"/>
        <element name="historyInterpolationRule" type="womlcore:TimeInterpolationPropertyType" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-core.xsd
