Element gml:AbstractTopoPrimitive
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:AbstractTopoPrimitive acts as the base type for all topological primitives. Topology primitives are the atomic (smallest possible) units of a topology complex.
Each topology primitive may contain references to other topology primitives of codimension 2 or more (gml:isolated). Conversely, nodes may have faces as containers and nodes and edges may have solids as containers (gml:container).

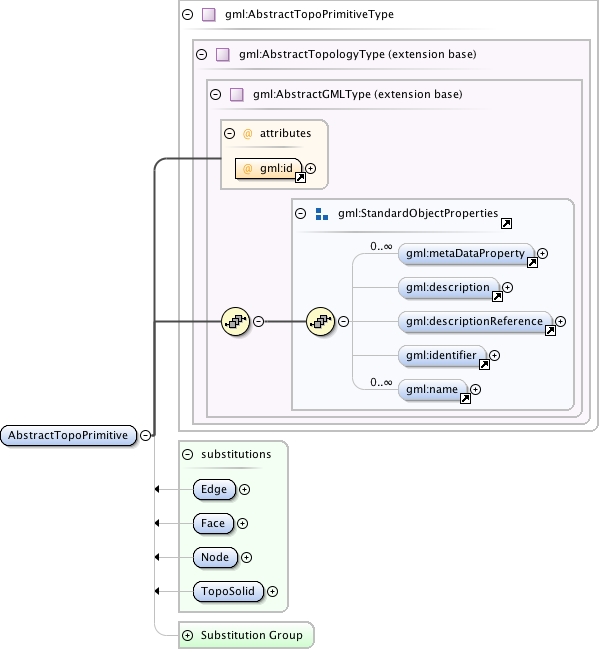

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index347.tmp#id785 index348.tmp#id787 index76.tmp#id658 index349.tmp#id659 index75.tmp#id657 index350.tmp#id660
Type gml:AbstractTopoPrimitiveType
Type hierarchy
Properties
content: complex
abstract: true
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name*
Children gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name
Instance

<gml:AbstractTopoPrimitive gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:AbstractTopoPrimitive>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="AbstractTopoPrimitive" type="gml:AbstractTopoPrimitiveType" abstract="true" substitutionGroup="gml:AbstractTopology">
  <annotation>
    <documentation>gml:AbstractTopoPrimitive acts as the base type for all topological primitives. Topology primitives are the atomic (smallest possible) units of a topology complex. Each topology primitive may contain references to other topology primitives of codimension 2 or more (gml:isolated). Conversely, nodes may have faces as containers and nodes and edges may have solids as containers (gml:container).</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/topology.xsd
