Complex Type gml:AbstractTopologyType
Namespace http://www.opengis.net/gml/3.2
Annotations

This abstract type supplies the root or base type for all topological elements including primitives and complexes. It inherits AbstractGMLType and hence can be identified using the gml:id attribute.

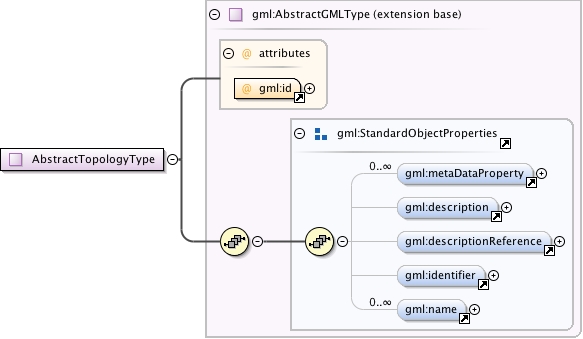

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77
Type extension of gml:AbstractGMLType
Type hierarchy
Properties
abstract: true
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name*
Children gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<complexType name="AbstractTopologyType" abstract="true">
  <annotation>
    <documentation>This abstract type supplies the root or base type for all topological elements including primitives and complexes. It inherits AbstractGMLType and hence can be identified using the gml:id attribute.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGMLType"/>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.2.1/topology.xsd
