Complex Type gml:TopoComplexType
Namespace http://www.opengis.net/gml/3.2

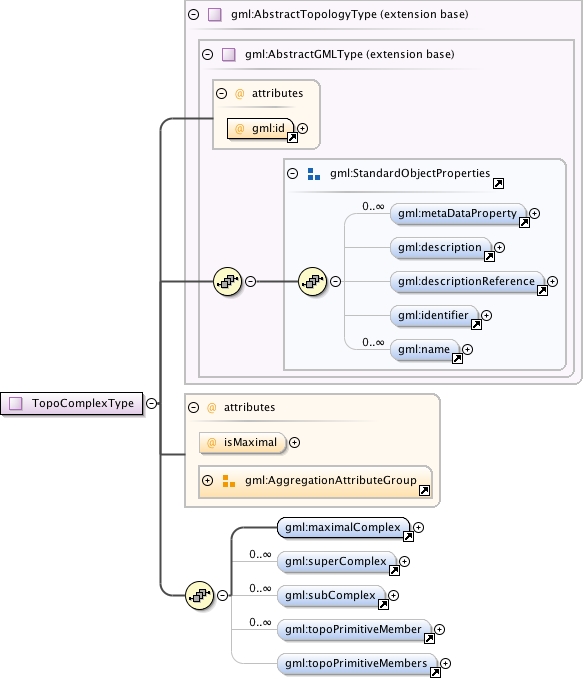

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index347.tmp#id785 index485.tmp#id840 index26.tmp#id389 index486.tmp#id832 index487.tmp#id834 index488.tmp#id835 index489.tmp#id836 index490.tmp#id838
Type extension of gml:AbstractTopologyType
Type hierarchy
Used by
Element gml:TopoComplex
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:maximalComplex , gml:superComplex* , gml:subComplex* , gml:topoPrimitiveMember* , gml:topoPrimitiveMembers{0,1}
Children gml:description, gml:descriptionReference, gml:identifier, gml:maximalComplex, gml:metaDataProperty, gml:name, gml:subComplex, gml:superComplex, gml:topoPrimitiveMember, gml:topoPrimitiveMembers
Attributes
QName Type Fixed Default Use Annotation
aggregationType gml:AggregationType optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
isMaximal boolean false optional
Source

<complexType name="TopoComplexType">
  <complexContent>
    <extension base="gml:AbstractTopologyType">
      <sequence>
        <element ref="gml:maximalComplex"/>
        <element ref="gml:superComplex" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:subComplex" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:topoPrimitiveMember" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="gml:topoPrimitiveMembers" minOccurs="0"/>
      </sequence>
      <attribute name="isMaximal" type="boolean" default="false"/>
      <attributeGroup ref="gml:AggregationAttributeGroup"/>
    </extension>
  </complexContent>
</complexType>
Schema location http://schemas.opengis.net/gml/3.2.1/topology.xsd
Attribute gml:TopoComplexType / @isMaximal
Namespace No namespace
Type boolean
Properties
default: false
Used by
Complex Type gml:TopoComplexType
Source

<attribute name="isMaximal" type="boolean" default="false"/>
Schema location http://schemas.opengis.net/gml/3.2.1/topology.xsd
