Element gml:TopoVolume
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:TopoVolume represents a homogeneous topological expression, a set of directed topologic solids, which if realised are isomorphic to a geometric solid primitive. The intended use of gml:TopoVolume is to appear within a solid feature to express the structural and geometric relationships of this solid feature to other features via the shared solid definitions.

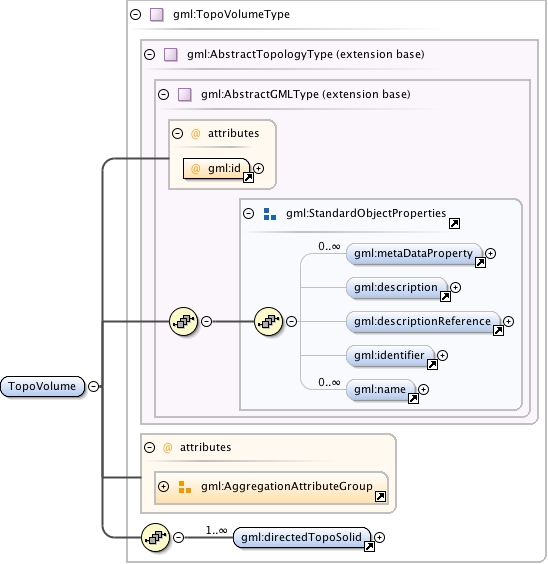

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index347.tmp#id785 index26.tmp#id389 index932.tmp#id811 index1262.tmp#id827
Type gml:TopoVolumeType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:directedTopoSolid+
Children gml:description, gml:descriptionReference, gml:directedTopoSolid, gml:identifier, gml:metaDataProperty, gml:name
Instance

<gml:TopoVolume aggregationType="" gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:TopoVolume>
Attributes
QName Type Fixed Default Use Annotation
aggregationType gml:AggregationType optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="TopoVolume" type="gml:TopoVolumeType">
  <annotation>
    <documentation>gml:TopoVolume represents a homogeneous topological expression, a set of directed topologic solids, which if realised are isomorphic to a geometric solid primitive. The intended use of gml:TopoVolume is to appear within a solid feature to express the structural and geometric relationships of this solid feature to other features via the shared solid definitions.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/topology.xsd
