Schema documentation for component womlcore:AbstractMeteorologicalObjectCollectionType

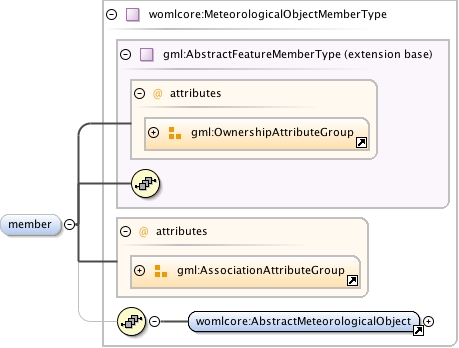

<womlcore:member xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple"> <womlcore:AbstractMeteorologicalObject gml:id="">{1,1}</womlcore:AbstractMeteorologicalObject> </womlcore:member>

QName

Type

Fixed

Default

Use

Annotation

gml:remoteSchema

anyURI

optional

nilReason

gml:NilReasonType

optional

owns

boolean

false

optional

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Parent type for collections of Met Objects. Note: The model of this type is updated according to the new GML feature collection model defined in GML 3.2.1 spec Chapter 9.9.1. This type no longer extends the gml:AbstractFeatureCollection (deprecated in GML 3.2). GML feature collection is now any feature having a property of type extending gml:AbstractFeatureMemberType. Only features substitutable for AbstractMeteorologicalObject are now allowed as members of the collection.

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

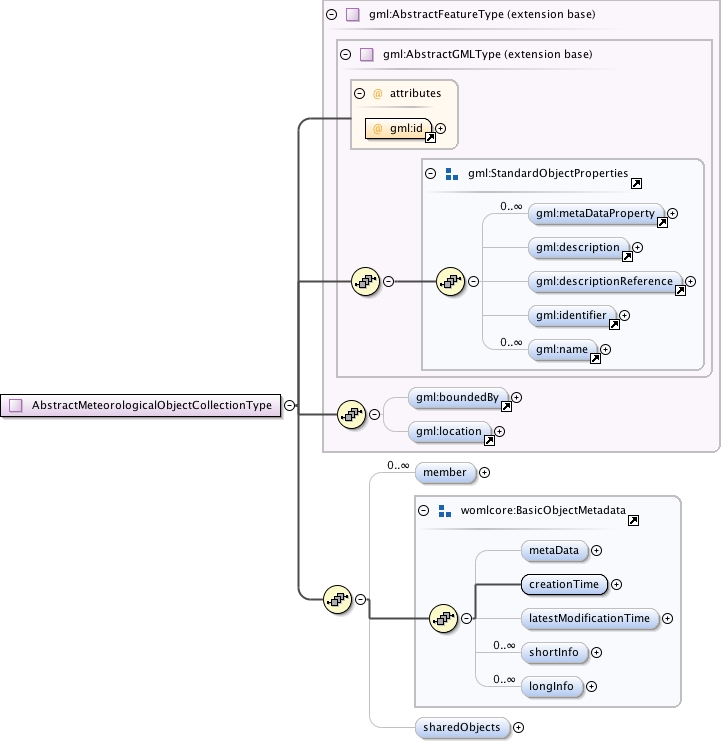

<complexType name="AbstractMeteorologicalObjectCollectionType" abstract="true"> <annotation> <documentation>Parent type for collections of Met Objects. Note: The model of this type is updated according to the new GML feature collection model defined in GML 3.2.1 spec Chapter 9.9.1. This type no longer extends the gml:AbstractFeatureCollection (deprecated in GML 3.2). GML feature collection is now any feature having a property of type extending gml:AbstractFeatureMemberType. Only features substitutable for AbstractMeteorologicalObject are now allowed as members of the collection.</documentation> </annotation> <complexContent> <extension base="gml:AbstractFeatureType"> <sequence> <element name="member" type="womlcore:MeteorologicalObjectMemberType" minOccurs="0" maxOccurs="unbounded"/> <group ref="womlcore:BasicObjectMetadata"/> <element name="sharedObjects" type="womlcore:ReferenceableObjectArrayAssociationType" minOccurs="0" maxOccurs="1"/> </sequence> </extension> </complexContent> </complexType>

Showing:
