Element gml:Node
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:Node represents the 0-dimensional primitive.
The optional coboundary of a node (gml:directedEdge) is a sequence of directed edges which are incident on this node. Edges emanating from this node appear in the node coboundary with a negative orientation.
If provided, the aggregationType attribute shall have the value "sequence".
A node may optionally be realised by a 0-dimensional geometric primitive (gml:pointProperty).

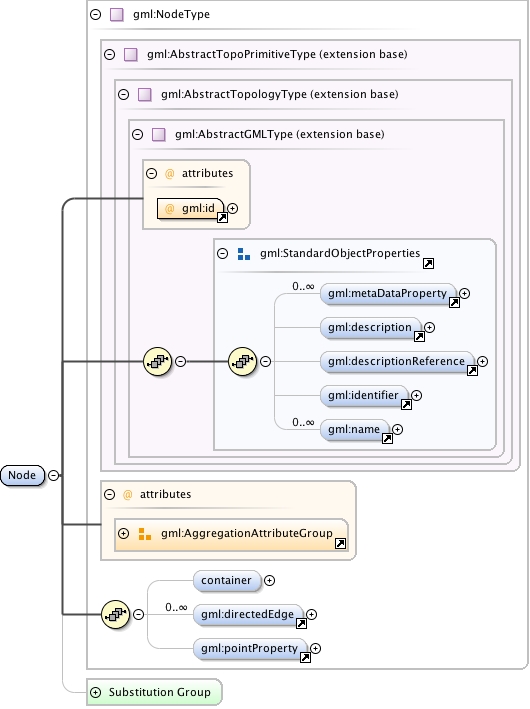

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index347.tmp#id785 index348.tmp#id787 index26.tmp#id389 index765.tmp#id791 index766.tmp#id796 index64.tmp#id254 index765.tmp#id790
Type gml:NodeType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:container{0,1} , gml:directedEdge* , gml:pointProperty{0,1}
Children gml:container, gml:description, gml:descriptionReference, gml:directedEdge, gml:identifier, gml:metaDataProperty, gml:name, gml:pointProperty
Instance

<gml:Node aggregationType="" gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:Node>
Attributes
QName Type Fixed Default Use Annotation
aggregationType gml:AggregationType optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="Node" type="gml:NodeType" substitutionGroup="gml:AbstractTopoPrimitive">
  <annotation>
    <documentation>gml:Node represents the 0-dimensional primitive. The optional coboundary of a node (gml:directedEdge) is a sequence of directed edges which are incident on this node. Edges emanating from this node appear in the node coboundary with a negative orientation. If provided, the aggregationType attribute shall have the value "sequence". A node may optionally be realised by a 0-dimensional geometric primitive (gml:pointProperty).</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/topology.xsd
