Element gml:Edge
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:Edge represents the 1-dimensional primitive.
The topological boundary of an Edge (gml:directedNode) consists of a negatively directed start Node and a positively directed end Node.
The optional coboundary of an edge (gml:directedFace) is a circular sequence of directed faces which are incident on this edge in document order. In the 2D case, the orientation of the face on the left of the edge is "+"; the orientation of the face on the right on its right is "-".
If provided, the aggregationType attribute shall have the value "sequence".
An edge may optionally be realised by a 1-dimensional geometric primitive (gml:curveProperty).

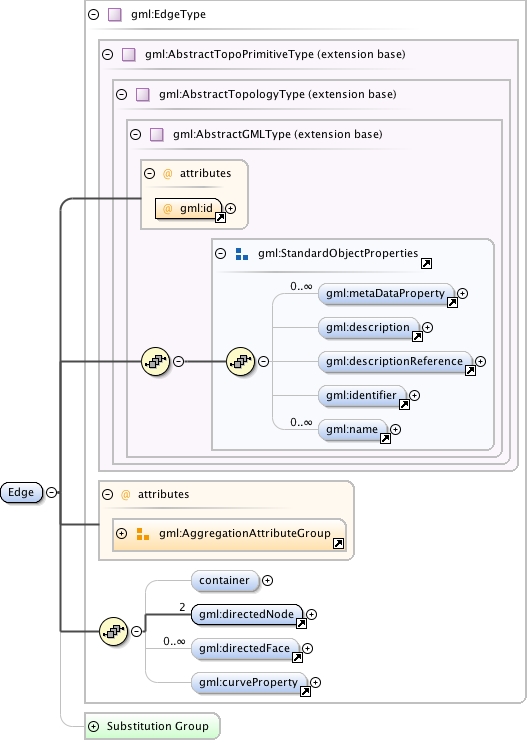

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index347.tmp#id785 index348.tmp#id787 index26.tmp#id389 index850.tmp#id799 index851.tmp#id807 index852.tmp#id803 index853.tmp#id561 index850.tmp#id798
Type gml:EdgeType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:container{0,1} , gml:directedNode{2,2} , gml:directedFace* , gml:curveProperty{0,1}
Children gml:container, gml:curveProperty, gml:description, gml:descriptionReference, gml:directedFace, gml:directedNode, gml:identifier, gml:metaDataProperty, gml:name
Instance

<gml:Edge aggregationType="" gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:Edge>
Attributes
QName Type Fixed Default Use Annotation
aggregationType gml:AggregationType optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="Edge" type="gml:EdgeType" substitutionGroup="gml:AbstractTopoPrimitive">
  <annotation>
    <documentation>gml:Edge represents the 1-dimensional primitive. The topological boundary of an Edge (gml:directedNode) consists of a negatively directed start Node and a positively directed end Node. The optional coboundary of an edge (gml:directedFace) is a circular sequence of directed faces which are incident on this edge in document order. In the 2D case, the orientation of the face on the left of the edge is "+"; the orientation of the face on the right on its right is "-". If provided, the aggregationType attribute shall have the value "sequence". An edge may optionally be realised by a 1-dimensional geometric primitive (gml:curveProperty).</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/topology.xsd
