Schema documentation for component womlcore:TimeInterpolationType

Showing:

Attributes

Diagrams

Facets

Properties

Source

Used by

Element womlcore:TimeInterpolationType / womlcore:method

Namespace

http://xml.fmi.fi/namespace/woml/core/2011/03/15

Diagram

Type

womlcore:timeInterpolationMethodType

Properties

content:	simple
minOccurs:	1
maxOccurs:	1

Facets

enumeration	linear
enumeration	nearest-neighbour

Source

<element name="method" type="womlcore:timeInterpolationMethodType" minOccurs="1" maxOccurs="1"/>

Schema location

http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd

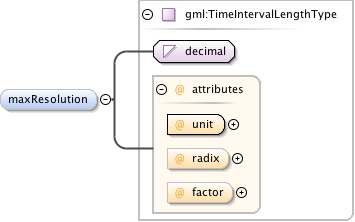

Element womlcore:TimeInterpolationType / womlcore:maxResolution

Namespace

http://xml.fmi.fi/namespace/woml/core/2011/03/15

Diagram

Type

gml:TimeIntervalLengthType

Properties

content:	complex
minOccurs:	0
maxOccurs:	1

Attributes

QName	Type	Use
factor	integer	optional
radix	positiveInteger	optional
unit	gml:TimeUnitType	required

Source

<element name="maxResolution" type="gml:TimeIntervalLengthType" minOccurs="0" maxOccurs="1"/>

Schema location

http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd

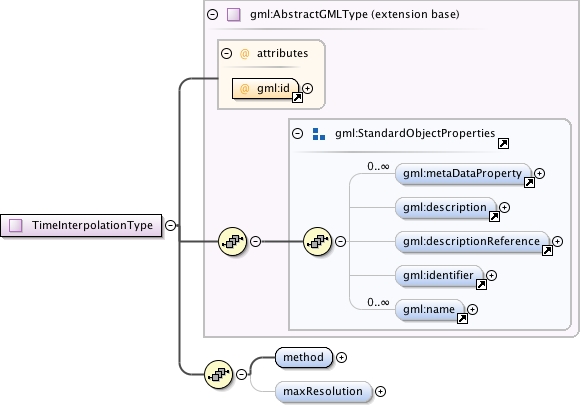

Complex Type womlcore:TimeInterpolationType

Namespace

http://xml.fmi.fi/namespace/woml/core/2011/03/15

Diagram

Type

extension of gml:AbstractGMLType

Type hierarchy

gml:AbstractGMLType
- womlcore:TimeInterpolationType

Used by

Element

womlcore:TimeInterpolation

Model

gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , womlcore:method , womlcore:maxResolution{0,1}

Children

gml:description, gml:descriptionReference, gml:identifier, gml:metaDataProperty, gml:name, womlcore:maxResolution, womlcore:method

Attributes

QName

Type

Fixed

Default

Use

Annotation

gml:id

required

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

Source

<complexType name="TimeInterpolationType">
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <element name="method" type="womlcore:timeInterpolationMethodType" minOccurs="1" maxOccurs="1"/>
        <element name="maxResolution" type="gml:TimeIntervalLengthType" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

Schema location

http://xml.fmi.fi/schema/woml/core/2011/03/15/woml-common.xsd
