Element gml:TimePeriod
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:TimePeriod acts as a one-dimensional geometric primitive that represents an identifiable extent in time.
The location in of a gml:TimePeriod is described by the temporal positions of the instants at which it begins and ends. The length of the period is equal to the temporal distance between the two bounding temporal positions.
Both beginning and end may be described in terms of their direct position using gml:TimePositionType which is an XML Schema simple content type, or by reference to an indentifiable time instant using gml:TimeInstantPropertyType.
Alternatively a limit of a gml:TimePeriod may use the conventional GML property model to make a reference to a time instant described elsewhere, or a limit may be indicated as a direct position.

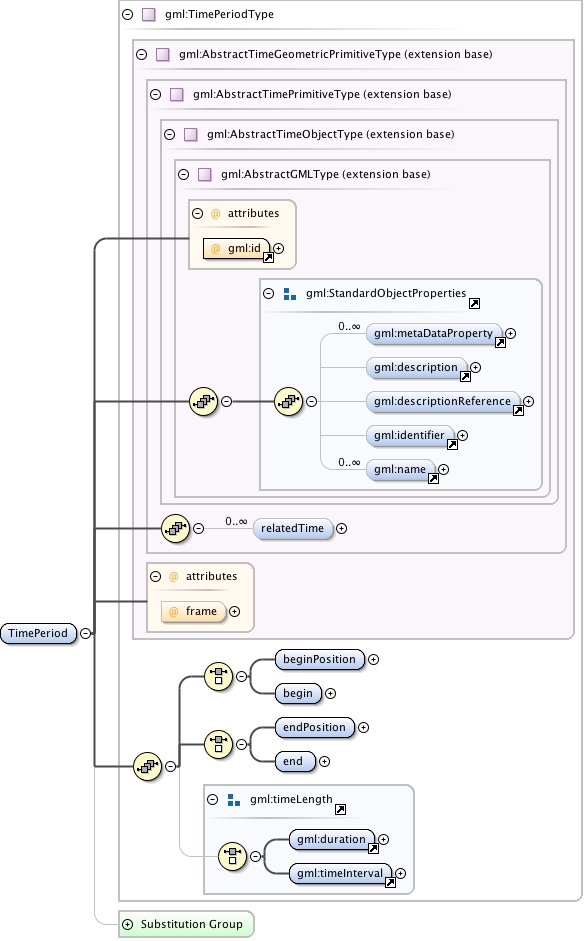

Diagram
Diagram index18.tmp#id85 index19.tmp#id79 index20.tmp#id100 index21.tmp#id102 index22.tmp#id106 index23.tmp#id111 index24.tmp#id78 index25.tmp#id77 index170.tmp#id185 index171.tmp#id186 index171.tmp#id184 index1050.tmp#id756 index1050.tmp#id755 index1051.tmp#id761 index1051.tmp#id762 index1051.tmp#id763 index1051.tmp#id764 index758.tmp#id766 index759.tmp#id767 index1052.tmp#id765 index1051.tmp#id760
Type gml:TimePeriodType
Type hierarchy
Properties
content: complex
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:relatedTime* , (gml:beginPosition | gml:begin) , (gml:endPosition | gml:end) , (gml:duration | gml:timeInterval)
Children gml:begin, gml:beginPosition, gml:description, gml:descriptionReference, gml:duration, gml:end, gml:endPosition, gml:identifier, gml:metaDataProperty, gml:name, gml:relatedTime, gml:timeInterval
Instance

<gml:TimePeriod frame="#ISO-8601" gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:TimePeriod>
Attributes
QName Type Fixed Default Use Annotation
frame anyURI #ISO-8601 optional
gml:id ID required
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
Source

<element name="TimePeriod" type="gml:TimePeriodType" substitutionGroup="gml:AbstractTimeGeometricPrimitive">
  <annotation>
    <documentation>gml:TimePeriod acts as a one-dimensional geometric primitive that represents an identifiable extent in time. The location in of a gml:TimePeriod is described by the temporal positions of the instants at which it begins and ends. The length of the period is equal to the temporal distance between the two bounding temporal positions. Both beginning and end may be described in terms of their direct position using gml:TimePositionType which is an XML Schema simple content type, or by reference to an indentifiable time instant using gml:TimeInstantPropertyType. Alternatively a limit of a gml:TimePeriod may use the conventional GML property model to make a reference to a time instant described elsewhere, or a limit may be indicated as a direct position.</documentation>
  </annotation>
</element>
Schema location http://schemas.opengis.net/gml/3.2.1/temporal.xsd
